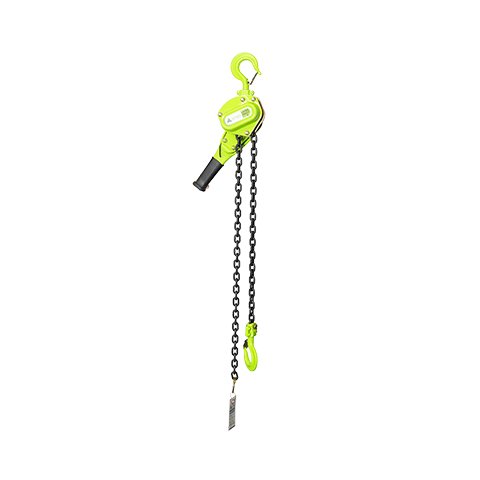

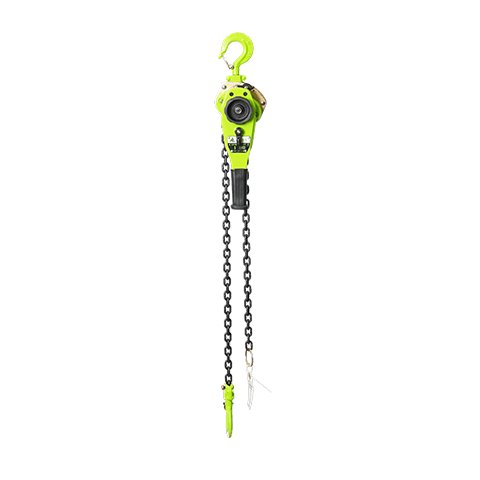

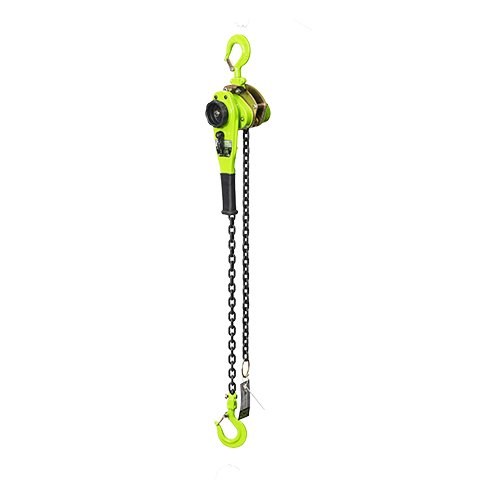

Lifmex Lever Hoist
The Lifmex Lever Hoist is a compact, heavy-duty manual lifting tool designed for precise and secure load handling. With capacities from 0.5 to 9 tons, it’s ideal for use in tight spaces, remote locations, or where power is unavailable.
| Capacity (t) | Standard Lift (m) | Running Test Load (t) | Effort required to lift Max Load (n) | Load Chain (mm) | Dimensions (mm) | Approx N.W. (kg/pc) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Falls | Diameter | A | B | C | D | L | H | |||||
| 0.5 | 1.5 | 0.75 | 330 | 1 | 5 | 10 | 80 | 95 | – | – | – | 3.5 |
| 0.75 | 1.5 | 1.125 | 230 | 1 | 6.3 | 10 | 55 | 128 | 32 | 25 | 303 | 6.3 |
| 1 | 1.5 | 1.5 | 250 | 1 | 6.3 | 15 | 55 | 128 | 32 | 26 | 303 | 7 |
| 1.5 | 1.5 | 2.25 | 295 | 1 | 7.1 | 6 | 64 | 149 | 36 | 36 | 365 | 11 |
| 2 | 1.5 | 3 | 315 | 1 | 7.1 | 16 | 64 | 149 | 36 | 36 | 365 | 11 |
| 3 | 1.5 | 4.5 | 414 | 1 | 9 | 19 | 85 | 182 | 46 | 36 | 48 | 19.5 |
| 6 | 1.5 | 9 | 430 | 2 | 9 | 19 | 85 | 246 | 50 | 60 | 70 | 27.5 |
| 9 | 1.5 | 13.5 | 430 | 3 | 9 | 25 | 85 | 335 | 57 | 60 | 70 | 47 |
Functions
- Lifts, pulls, and positions loads manually in any direction
- Provides precise control for accurate load alignment
- Enables safe operation in confined or remote areas
- Perfect for industrial, construction, and maintenance applications
Key Features
- 360° operation – works in vertical, horizontal, or diagonal positions
- Micro-adjustment capability for fine load positioning
- Lightweight and portable for easy transport and setup
- Manual operation – no external power source required
