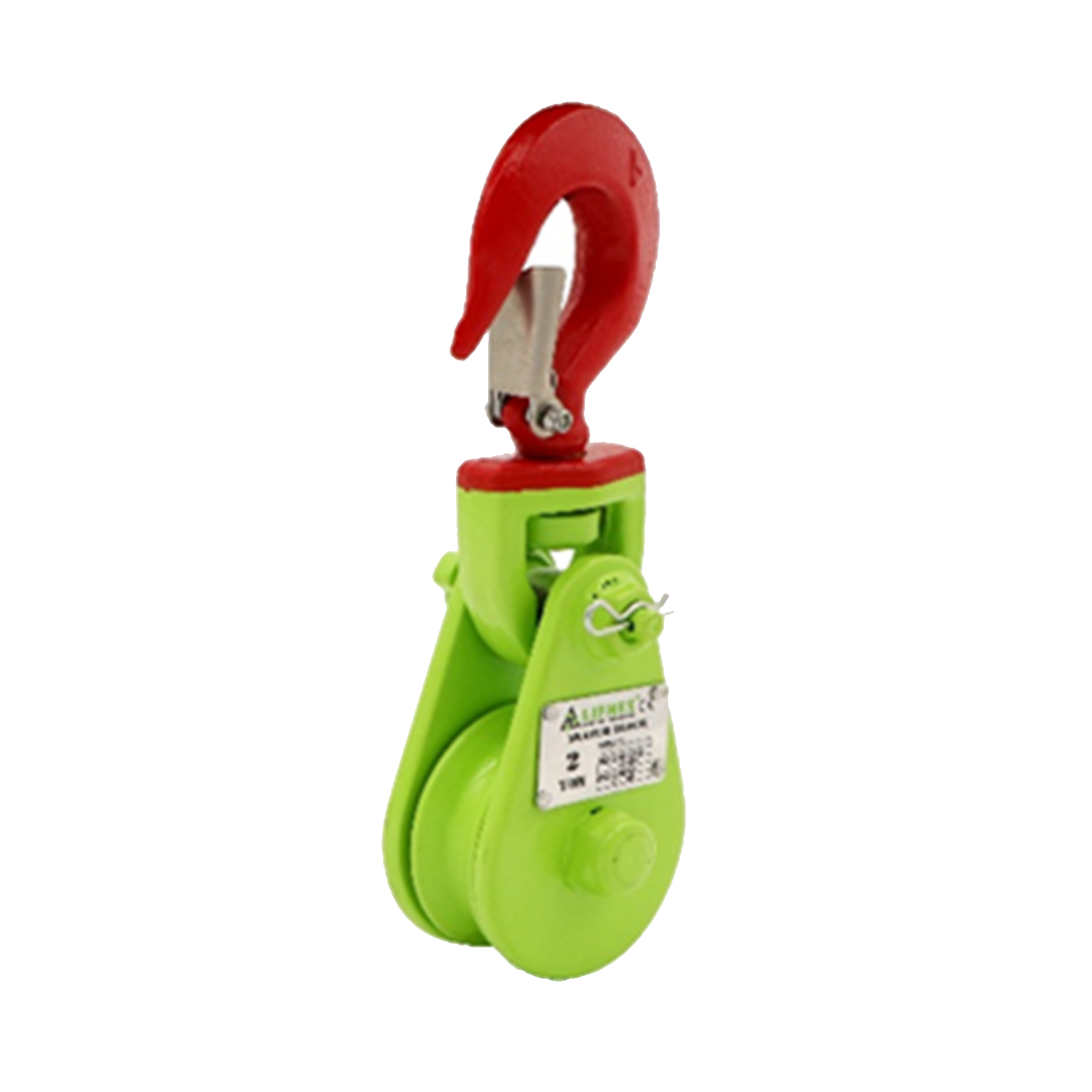

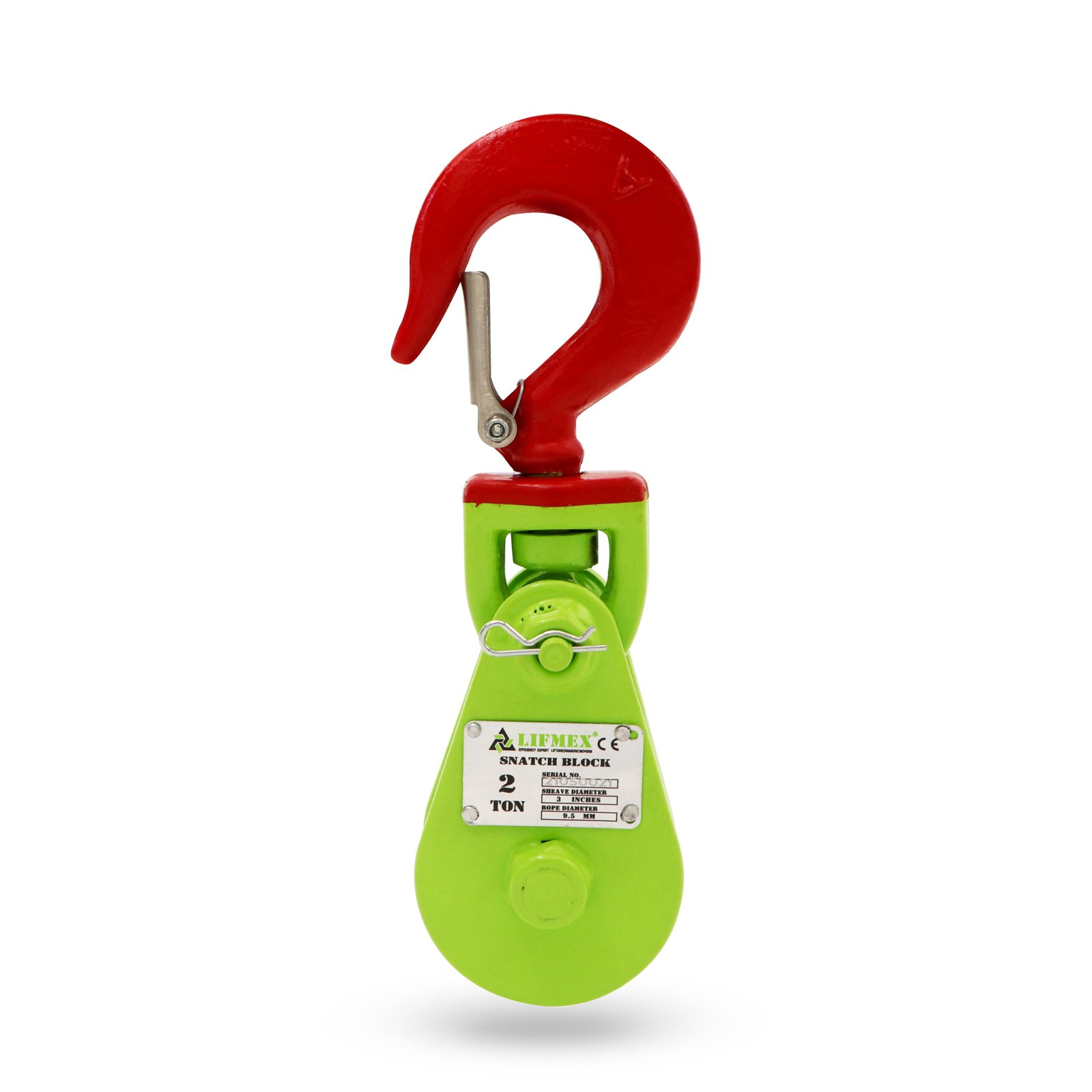

Snatch Block Hook Type
- A Snatch Block Hook Type is a mechanical device used to redirect the line of pull, making it easier to apply force in a desired direction.
- It consists of a grooved wheel (sheave) mounted in a frame, with a hook for attachment.
| Size
(in) |
WLL
(t) |
Sheave Diameter
(mm) |
Rope Diameter
(mm) |
Approx N.W.
(kg/pc) |
|---|---|---|---|---|
| 3 | 2 | 75 | 7-9 | 4 |
| 4 ½ | 4 | 115 | 10-12 | 6.1 |
| 6 | 8 | 150 | 20-22 | 14.4 |
| 8 | 15 | 200 | 22-24 | 24 |
| 10 | 12 | 250 | 24-26 | 42 |
| 16 | 22 | 400 | 28-32 | 108 |
Functions
- Off-Road Recovery: Used to extract vehicles from mud, snow, or other difficult terrain.
- Construction: Employed for lifting heavy loads, such as beams and structural components.
- Tree Care: Used to tension cables and lift heavy branches.
- Marine Applications: Utilized for mooring boats, pulling anchors, and other marine tasks.
- Industrial Settings: Employed in various industrial applications, such as manufacturing and material handling.
Key Features
- Changing Direction: Snatch blocks are primarily used to redirect the line of pull, making it easier to apply force in a desired direction.
- Mechanical Advantage: By redirecting the line, a snatch block can effectively increase the mechanical advantage, allowing you to lift heavier loads with less effort.
- Reducing Friction: The sheave within the snatch block reduces friction, making the pulling or lifting process more efficient.
