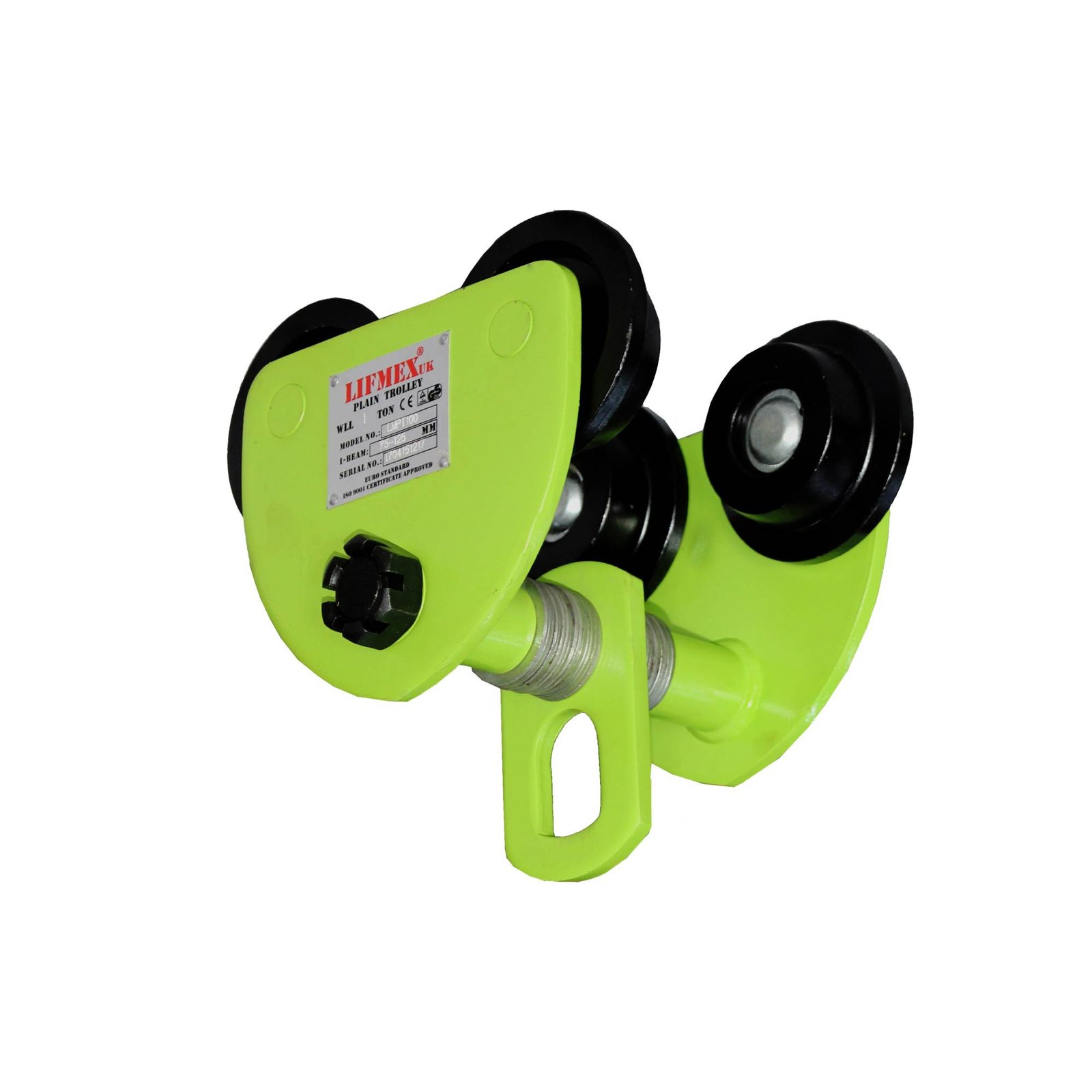

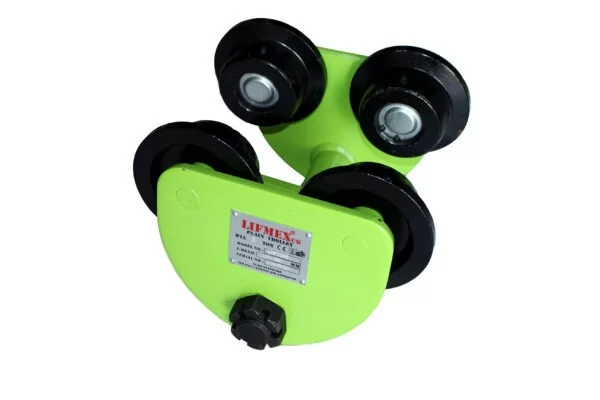

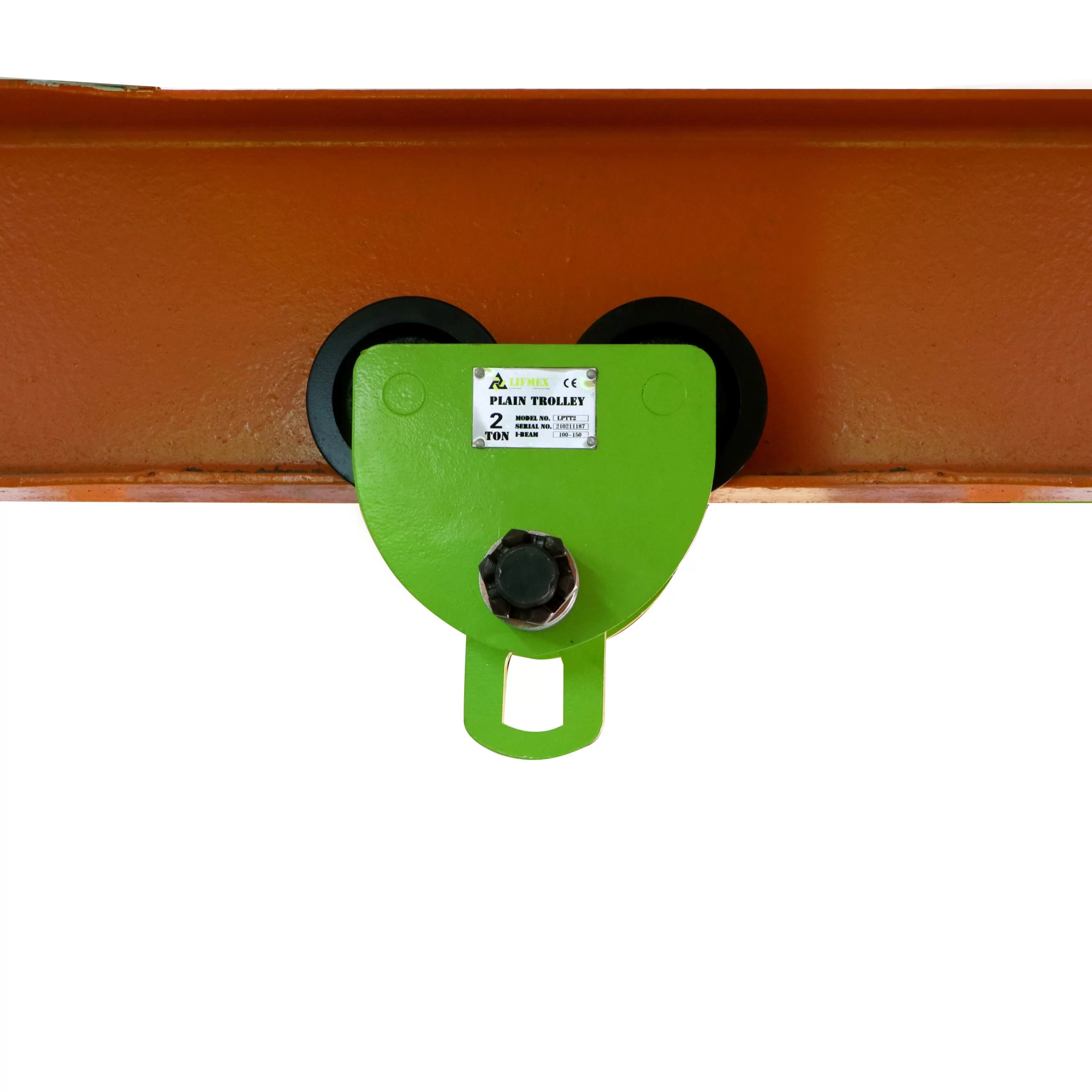

Lifmex Plain Trolley

The Lifmex Plain Trolley is a durable and low-maintenance solution for lateral load movement, suitable for flat or slightly irregular surfaces. With a capacity range from 0.5 to 10 tons, it is ideal for industrial lifting on H and I beams.



Capacity (t) Test Load (kN) Beam Width (mm) Min Turning Radius (m)
Standard Extra Width
0.5 6.25 75-125 75-180 0.9
1 12.5 75-125 58-220 1
1.5 18.75 100-150 66-220 1.1
2 25 100-150 66-220 1.2
3 37.5 100-150 74-220 1.3
5 62.5 125-175 90-220 1.4
10 125 110-200 110-300 1.7

Functions

  • Transports loads laterally along a beam
  • Suitable for flat and slightly uneven surfaces
  • Enables safe and stable movement of heavy loads
  • Works with manual or powered lifting systems

Key Features

  • Suspension eye for easy attachment to hooks and lifting gear
  • Smooth rolling action requiring minimal effort
  • Low maintenance design
  • Robust steel construction for heavy-duty applications
  • Quick and easy installation
