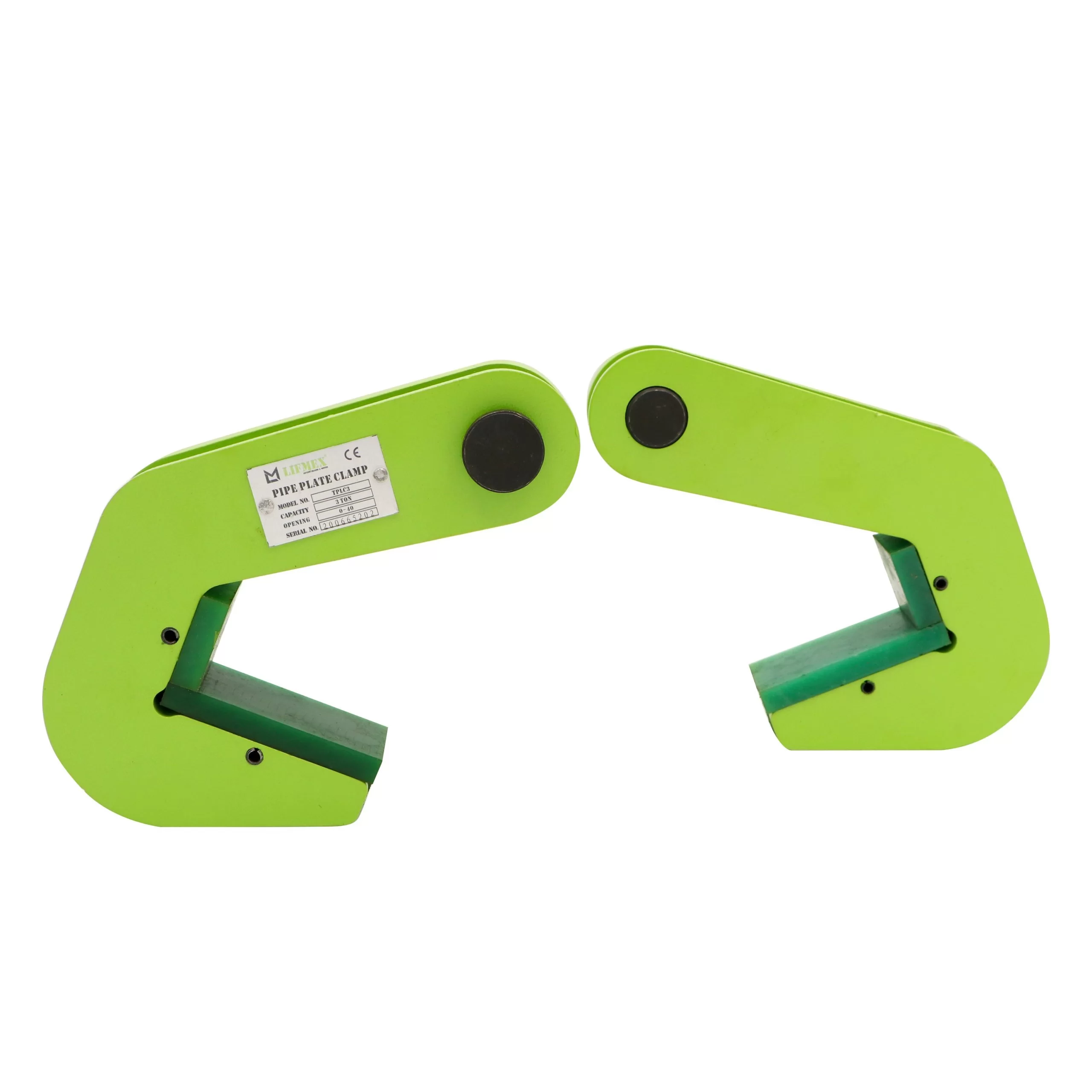

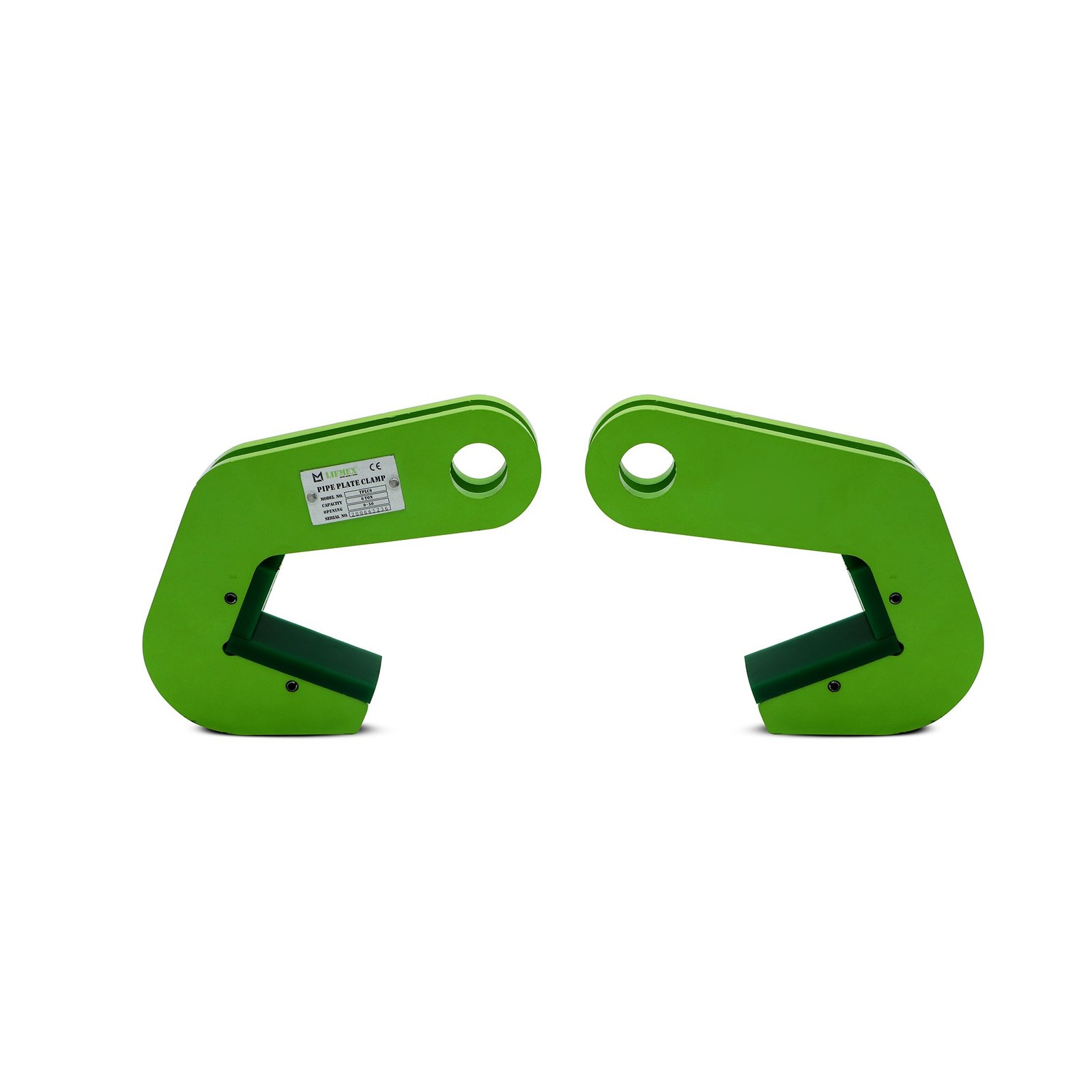

Lifmex Pipe Lifting Clamp
The Pipe Lifting Clamp is a high-strength, Teflon-coated lifting tool engineered for the horizontal handling of steel and concrete pipes. With a capacity range from 1.5 to 18 tons , it delivers performance with protection and ease of use.
| WLL in Pair
(t) |
Jaw Opening
(mm) |
Shackle Size | Approx N.W.
(kg) |
|---|---|---|---|
| 1.5 | 0–40 | 6.5T – 7/8″ | 1.5 |
| 3 | 0–40 | 6.5T – 7/8″ | 2 |
| 6 | 0–50 | 8.5T – 1″ | 3.2 |
| 8 | 0–70 | 9.5T – 1 1/8″ | 5 |
| 12 | 0–70 | 13.5T – 1 3/16″ | 13 |
| 18 | 0–70 | 25T – 1 3/4″ | 22 |
Functions
- Designed for the horizontal lifting and transport of steel and concrete pipes
- Ensures balanced and secure lifting when used in pairs
- Ideal for construction sites, pipe yards, and infrastructure projects
Key Features
- Capacity range: 1.5 TON to 18 TON (per pair)

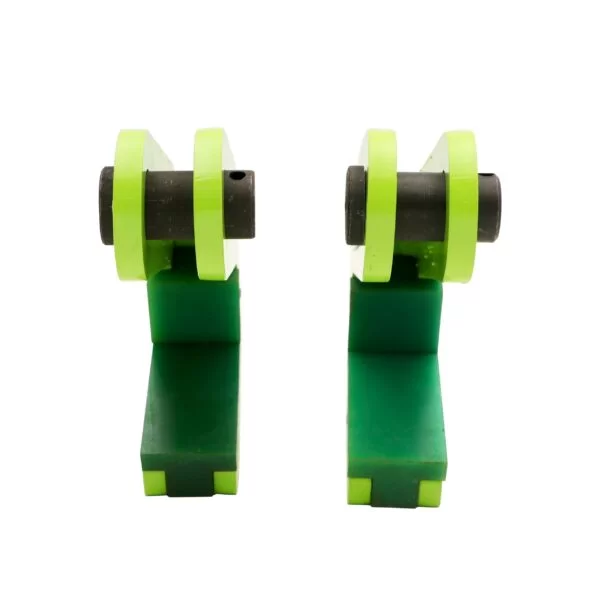

- Surface equipped with Teflon to prevent pipe damage
- Compact and lightweight design for easy handling
- High lifting capacity despite its small size
