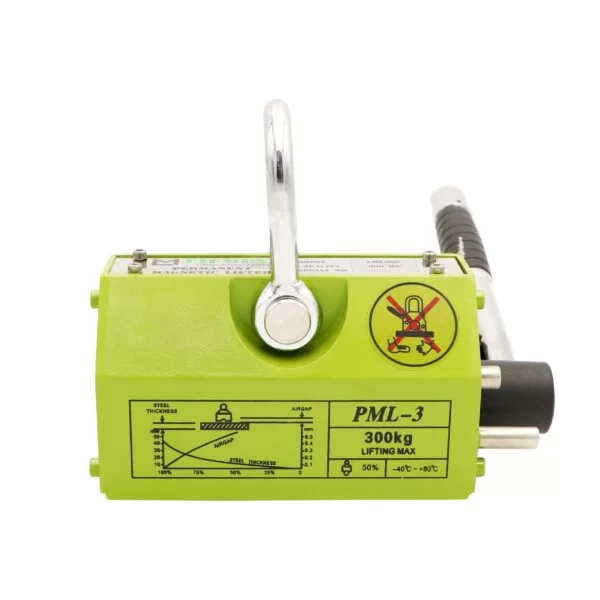

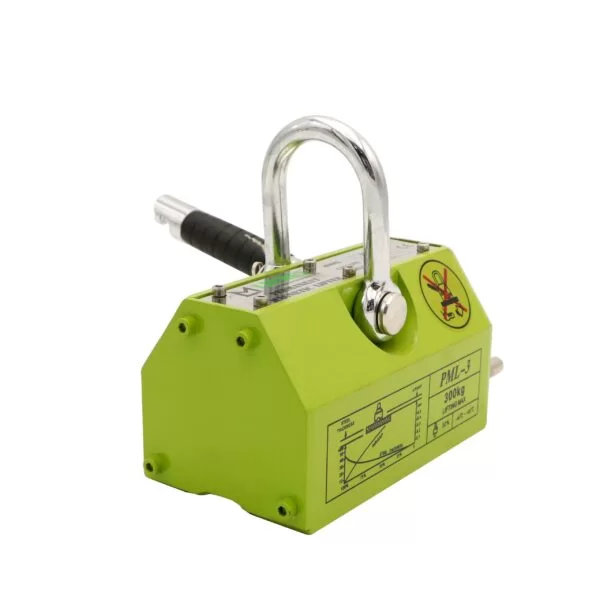

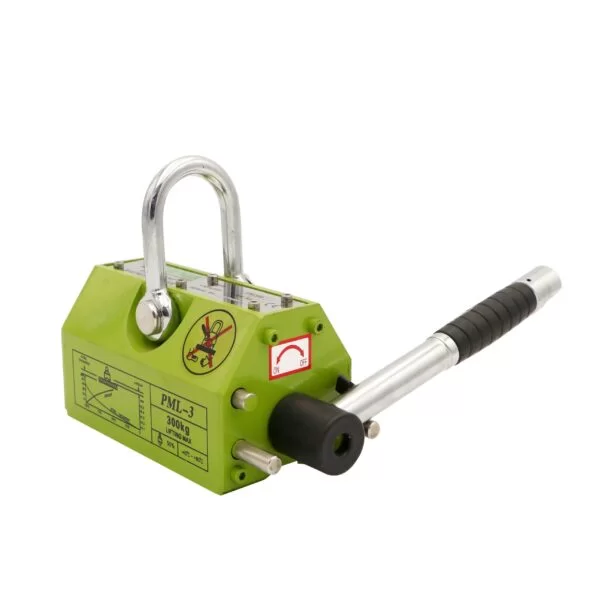

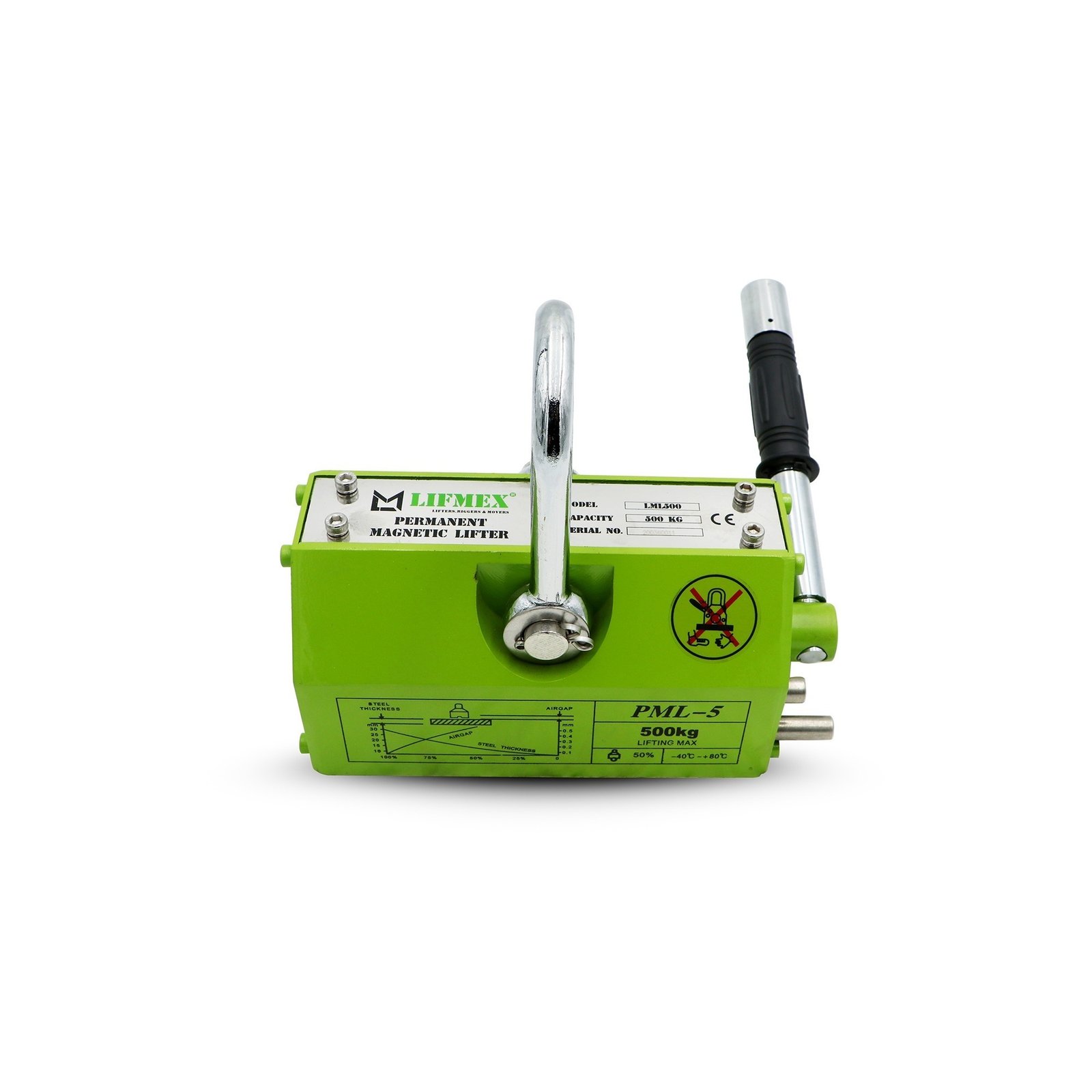

Lifmex Permanent Magnet Lifter

The Permanent Magnet Lifter is a specialized lifting tool designed to securely lift and handle ferromagnetic materials like steel plates, blocks, and machinery—without the need for external power. Ideal for workshops, factories, and warehouses



MAGNETIC LIFTER
MODEL RATED LIFTING STRENGTH

(KGF)

CYLINDRICAL LIFTING STRENGTH

(KGF)

MAX PULL OFF STRENGTH

(KGF)

OPERATION TEMPERATURE

(℃)

NET WEIGHT

(KG)

LML300 300 150 1050 <80 10
LML500 500 250 1750 <80 21
LML600 600 300 2100 <80 24
LML1000 1000 500 3500 <80 50
LML2000 2000 1000 7000 <80 125
LML3000 3000 1500 10500 <80 200
LML5000 5000 2500 17500 <80 398

Functions

  • No external power source required
  • Strong pull-off strength
  • Lightweight and compact design
  • Stable and long-lasting magnetic performance
  • Safe and maintenance-free operation

Key Features

  • Provides a consistent magnetic grip for secure lifting
  • Used for lifting, positioning, and transporting steel materials
  • Enhances workplace safety and efficiency
  • Ideal for flat or round ferrous loads
