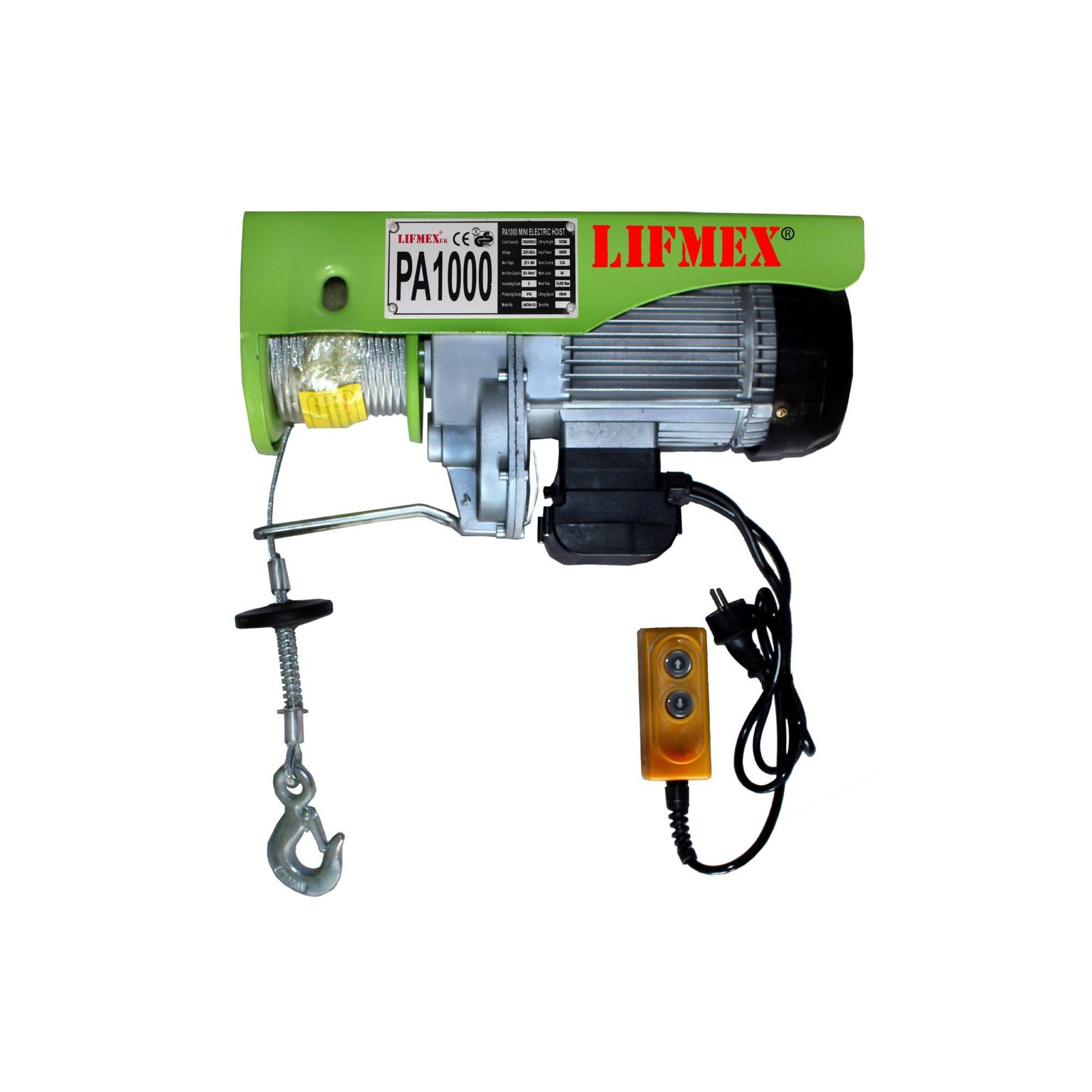

Lifmex Mini Electric Wire Rope Hoist
This lightweight and compact trolley system is an ideal replacement for traditional heavy structural lifting equipment. Designed for easy mounting on I-beams (width 80–100 mm), it supports lifting operations up to 1 ton and integrates seamlessly with Mini Electric Wire Rope Hoists, Chain Hoists, and Lever Hoists.
| Trolley Specifications | ||
|---|---|---|
| Capacity | t | 1 |
| Running Test Load | t | 1.2 |
| Lifting Height | m | 12/6 |
| Trolley Load | t | 1 |
| Operating Speed | m/min | 13 |
| Rotation Speed | rpm | 1400 |
| I-beam Width | mm | 80-100 |
| Min Turning Radius | cm | 100 |
| Input Power | W | 300 |
| Rated Voltage | V | 220 |
| SPECIFICATIONS | LMEH0212 | LMEH0412 | LMEH0512 | LMEH0812 | LMEH1012 | LMEH1020 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Hook | Double Hook | Single Hook | Double Hook | Single Hook | Double Hook | Single Hook | Double Hook | Single Hook | Double Hook | Single Hook | Double Hook | |
| Loading Capacity (kg) | 100 | 200 | 200 | 400 | 250 | 500 | 400 | 800 | 500 | 1000 | 500 | 1000 |
| Lifting Height (m) | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 10 | 5 | 10 | 5 |
| Lifting Speed (m/min) | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 10 | 4 | 8 | 4 |
| Cable Length (m) | 12 | 12 | 12 | 12 | 12 | 20 | ||||||
| Cable Diameter (mm) | 3 | 4 | 4 | 5 | 6 | 6 | ||||||
| Cable Break Resistance | 800kg | 1100kg | 1300kg | 2000kg | 2500kg | 2500kg | ||||||
| Service | S3-25%10min | S3-25%10min | S3-20%10min | S3-20%10min | S3-20%10min | S3-20%10min | ||||||
| Main Voltage | 220V-50Hz | 220V-50Hz | 220V-50Hz | 220V-50Hz | 220V-50Hz | 220V-50Hz | ||||||
| Motor Performance | 510W | 850W | 1000W | 1450W | 1800W | 1800W | ||||||
| Approximate N.W. (kg) | 11 | 14.5 | 15 | 18 | 28.5 | 29.5 | ||||||
Functions
- Lightweight, compact design
- Emergency stop and reinforced brake switch
- Up & down position limit safety device
- Thermal protection & IP54-rated
- Balance wheel for smooth movement
- No lubrication required for ball bearings
- Compatible with 80–100 mm I-beams
Key Features
- Facilitates safe and smooth lifting of loads up to 1 ton
- Allows easy turning with short turning radius
- Smooth running along I-beam without jerks
- Ideal for use in workshops, mines, docks, warehouses, and construction sites
