Lifmex Manual Chain Hoist

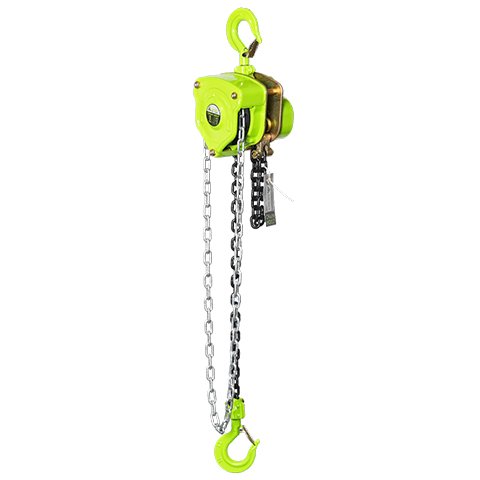

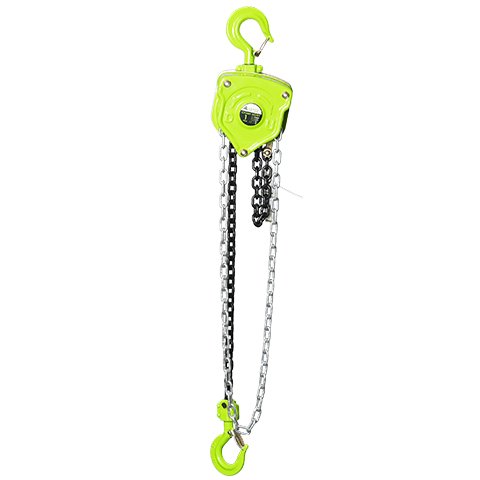

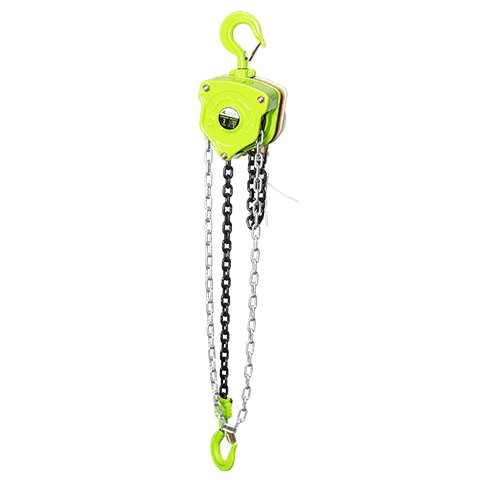

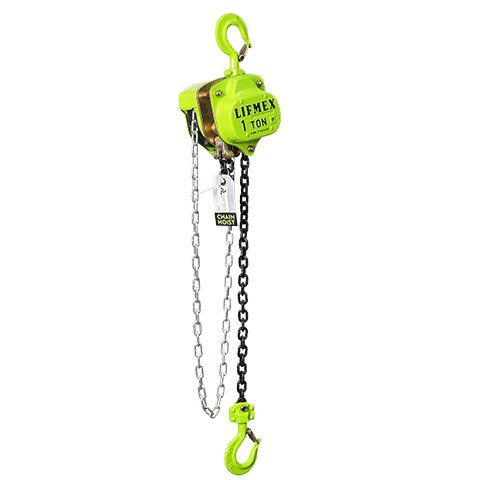

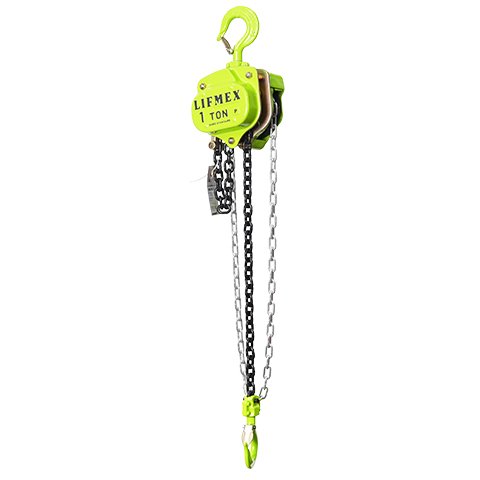

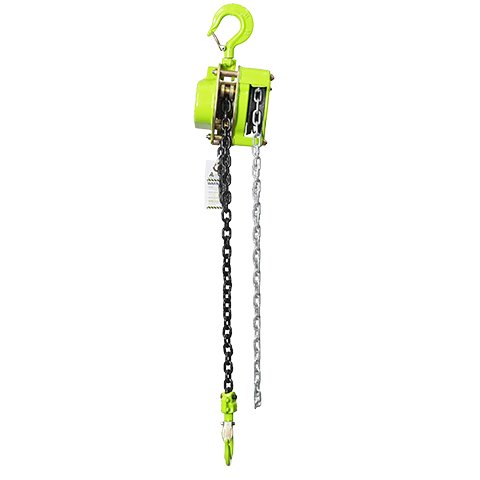

The Lifmex Manual Chain Block is a heavy-duty lifting solution designed for precise and safe vertical load handling in industrial environments. With capacities ranging from 0.5 ton to 30 tons, it offers dependable performance, low maintenance, and broad application versatility.
Capacity (t) | Standard Lift (m) | Proof Load (kN) | Effort required to lift MAX Load (n) | Load Chain (mm) | Dimensions (mm) | Approx N.W. (kg/pc) | ||||
---|---|---|---|---|---|---|---|---|---|---|
No. of Fall | Diameter | H | A | B | D | |||||
0.5 | 2.5 | 7.5 | 350 | 1 | 5×15 | 285 | 126 | 145 | 25 | 8.4 |
1 | 2.5 | 15 | 330 | 1 | 6×19 | 315 | 151 | 159 | 27 | 12 |
1.5 | 2.5 | 22.5 | 348 | 1 | 7.1×21 | 340 | 151 | 178 | 35 | 16.2 |
2 | 3 | 30 | 365 | 2 | 8×24 | 380 | 183 | 205 | 39 | 20 |
3 | 3 | 45 | 360 | 2 | 8×24 | 475 | 151 | 208 | 39 | 24 |
5 | 3 | 75 | 390 | 2 | 10×30 | 600 | 195 | 280 | 45 | 40 |
7.5 | 3 | 112.5 | 410 | 3 | 10×30 | 700 | 185 | 355 | 53 | 69 |
10 | 3 | 150 | 435 | 4 | 10×30 | 810 | 195 | 420 | 60 | 90 |
15 | 3 | 225 | 435 | 6 | 10×30 | 870 | 190 | 580 | 75 | 123 |
20 | 3 | 300 | 435*2 | 8 | 10×30 | 890 | 192 | 630 | 82 | 203 |
30 | 3 | 450 | 435*2 | 12 | 10×30 | 1000 | 230 | 670 | 106 | 235 |
Functions
- Lifts and lowers heavy loads manually using a hand chain
- Enables accurate positioning of loads in vertical applications
- Designed for reliable lifting in various industrial and commercial settings
Key Features
- Heavy-duty construction for industrial-grade performance
- Smooth operation for precise control and load placement
- Low maintenance design for reduced downtime
- Versatile use in workshops, warehouses, construction sites, and maintenance areas.
