Lifmex LBS BOAT Winch 600 LBS To 2500 LBS

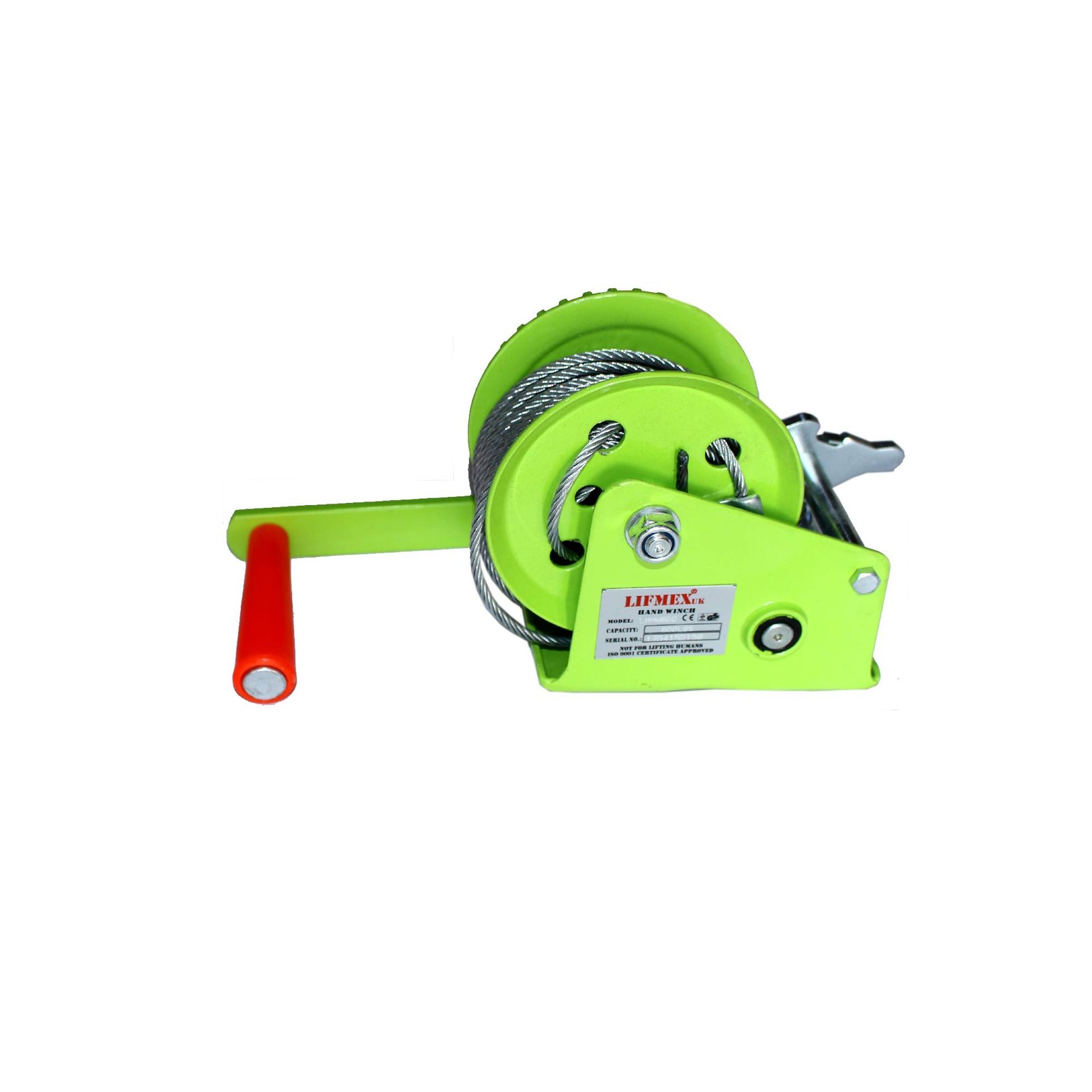

The Lifmex LBS Boat Winch is a compact, high-performance manual winch for lifting, lowering, and pulling loads up to 2500 lbs. Built for marine use, it offers durability, easy operation, and reliable load control.
BOAT WINCH (LBS MODEL) | |||||
---|---|---|---|---|---|
MODEL | CAPACITY RATING
(LBS/KGS) |
GEAR RATIO | HUB SIZE DIA
(MM) |
SIZE OF WIRE ROPE
(MM × M) |
NET WEIGHT
(KG) |
LHW06 | 600/270 | 3.1:1 | 16 | 4.2×8 | 13 |
LHW08 | 800/360 | 3.1:1 | 16 | 4.2×8 | 15 |
LHW12 | 1200/540 | 4.1:1 | 18 | 4.5×10 | 20 |
LHW16 | 1600/720 | 5.1:1 | 20 | 4.8×10 | 16.5 |
LHW25 | 2500/1100 | 4.1:1 | 42 | 5×10 | 23 |
Functions
- Lifts, lowers, and pulls loads with manual crank operation
- Ensures safe load handling in marine and boat-related applications
- Provides controlled movement of heavy loads with minimal effort
Key Features
- Compact design with high performance
- Manual crank handle for precise control
- Robust steel construction for strength and longevity
- Green finish for visibility and style
- Easy installation and operation
- Suitable for recreational and professional marine environments.
