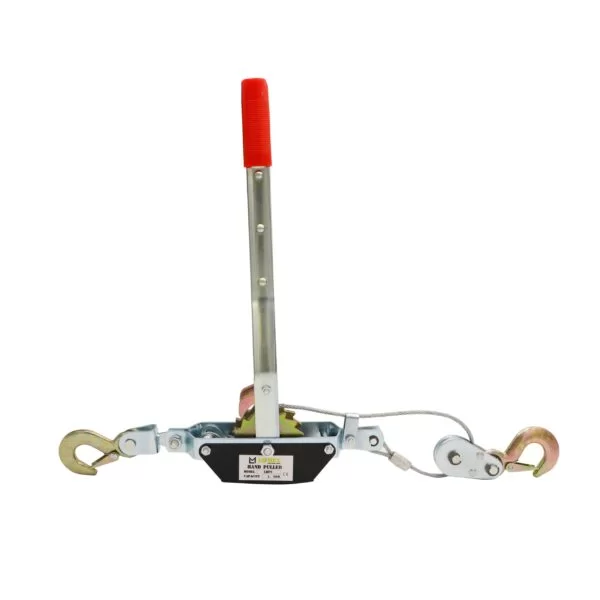

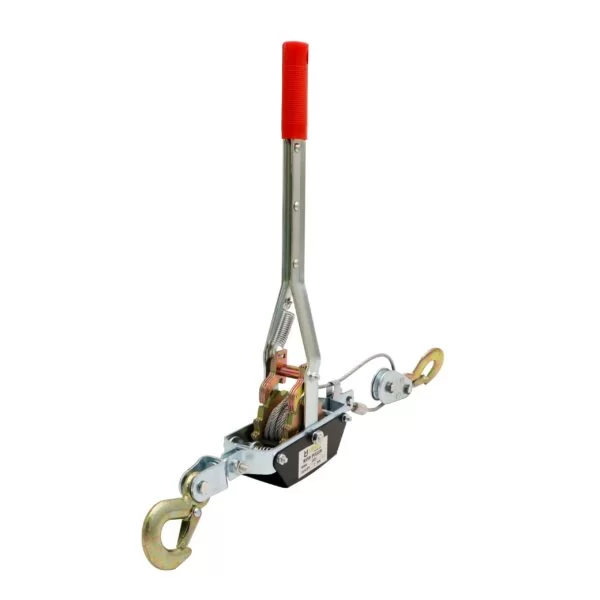

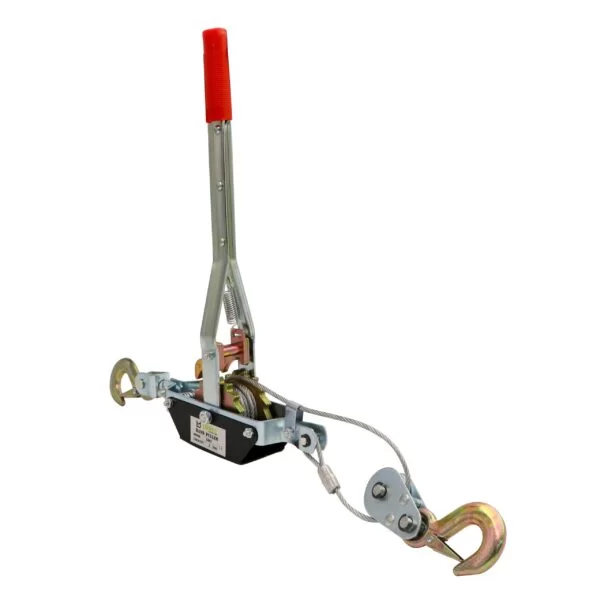

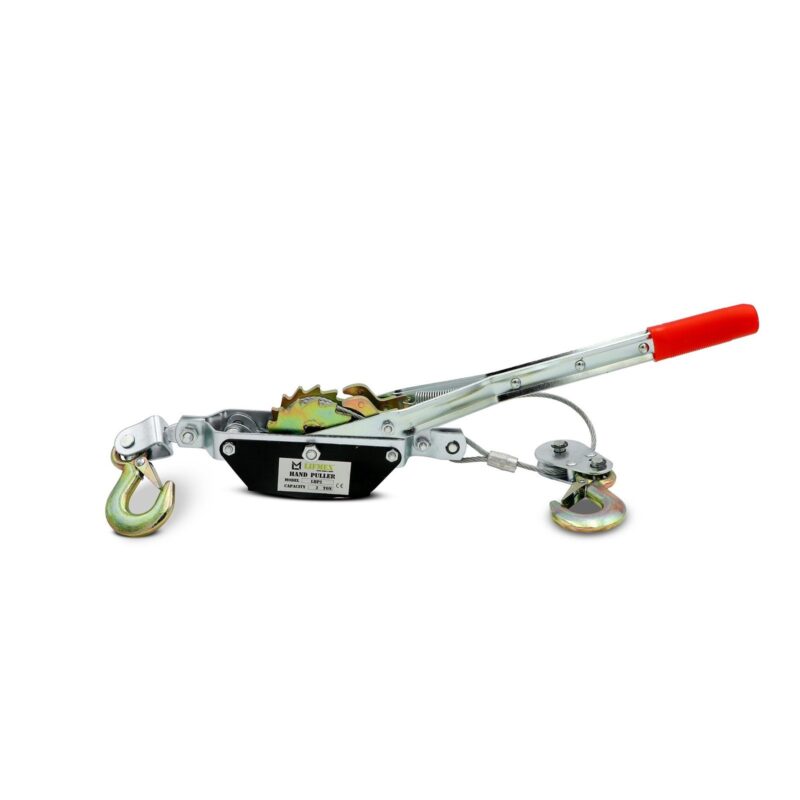

Lifmex Hand Puller
- The Double Hook & Double Wheel Puller is a durable manual tool for pulling, lifting, and securing loads from 1 to 4 tons. Built with an aluminum alloy ratchet and galvanized steel body, it offers strength, reliability, and smooth operation for industrial use.
| Capacity
(t) |
Rated Pull
(kN) |
Cable Size (mm × m) | Effective
Distance (m) |
|
|---|---|---|---|---|
| Diameter | Length | |||
| 1 | 4.9 | 4.5 | 1.8 | 0.5 |
| 2 | 9.8 | 4.8 | 3 | 1.1 |
| 4 | 19.6 | 5.5 | 3.3 | 1.2 |
Functions
- Designed to pull, lift, and position heavy loads manually
- Allows controlled lifting and lowering through a ratchet mechanism
- Secures loads in a stable position during work
- Ideal for use in construction, industrial, and maintenance applications
Key Features
- Drum and ratchet wheel casted as one unit from aluminum alloy for strength and reduced weight
- Steel hand and frame with galvanized finish to resist chipping and corrosion
- Spring-loaded ratchet control lever allows operation in any position, with easy switch between lifting and lowering
- Double hook and double wheel design for improved load balance and strength
