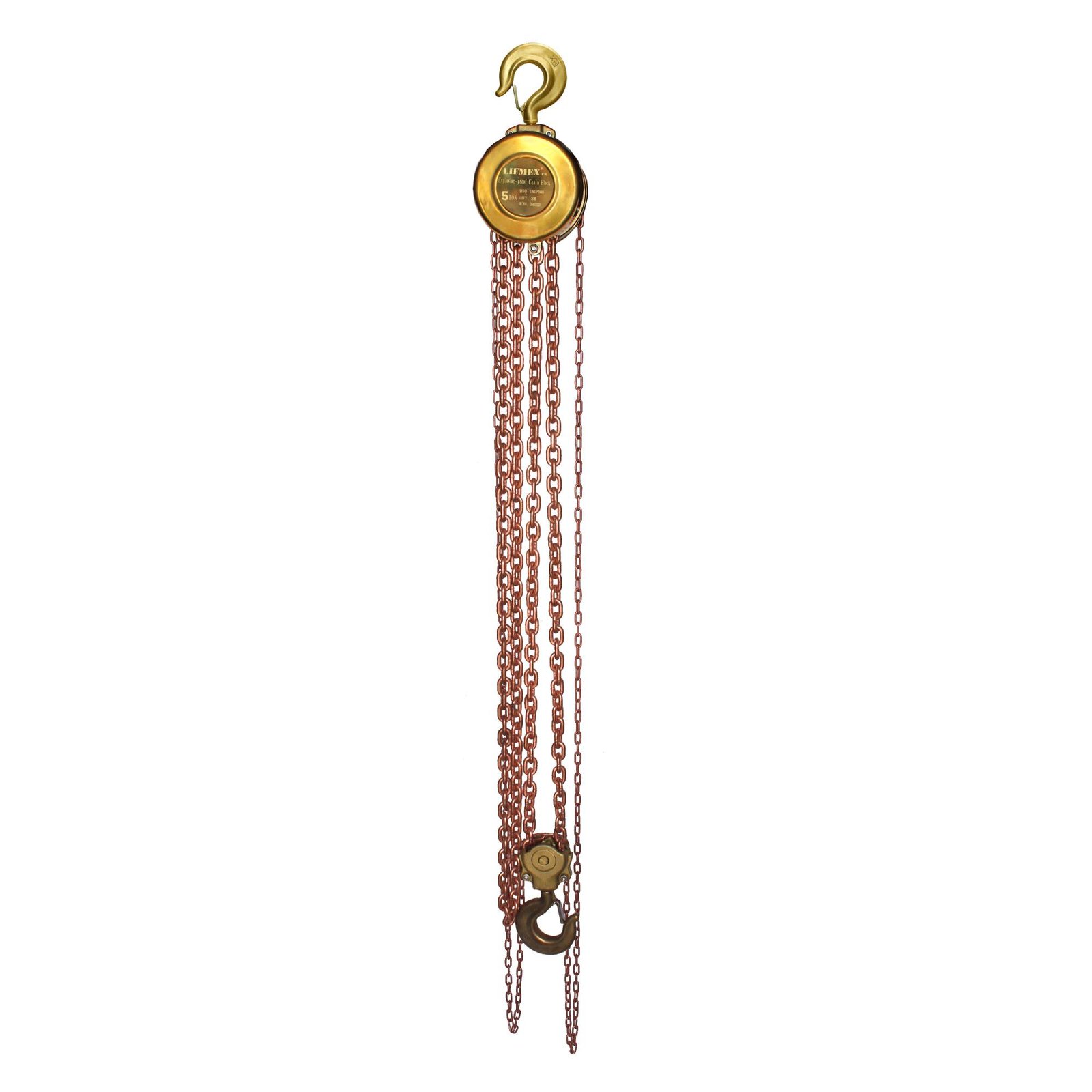

Lifmex Explosion Proof Chain Hoist
The ATEX-certified Explosion-Proof Chain Hoist is engineered for lifting in hazardous environments with explosive gases, dust, or vapors. Built for maximum safety, it ensures ignition prevention and reliable performance in the world’s most dangerous work zones.
| Capacity (t) | Standard Lift (m) | Work Grade | Load Chain (mm) | Headroom (mm)
(drawn close) Z Grade |
Approx N.W. (kg/pc)
Z Grade |
|
|---|---|---|---|---|---|---|
| No. of Fall | Diameter | |||||
| 0.5 | 2.5 | Z Grade | 1 | 6 | 350 | 14 |
| 1 | 2.5 | Z Grade | 1 | 6 | 400 | 17 |
| 2 | 2.5 | Z Grade | 2 | 6 | 530 | 30 |
| 3.2 | 3 | Z Grade | 2 | 8 | 700 | 45 |
| 5 | 3 | Z Grade | 2 | 10 | 850 | 70 |
| 10 | 3 | Z Grade | 4 | 10 | 1200 | 130 |
Functions
- Lifts and lowers heavy loads safely in explosive or flammable environments.
- Prevents ignition of hazardous substances during operation.
Key Features
- Explosion-Proof Design: Special housing, motor, and control systems prevent sparks or ignition.
- Non-Sparking Materials: Constructed with spark-resistant alloys like copper-free metals and stainless steel.
- Sealed Electrical Enclosures: Protect internal components from flammable atmospheres and prevent ingress.
- Safety Compliance: Certified to ATEX, IECEx, and other global hazardous-area standards.
