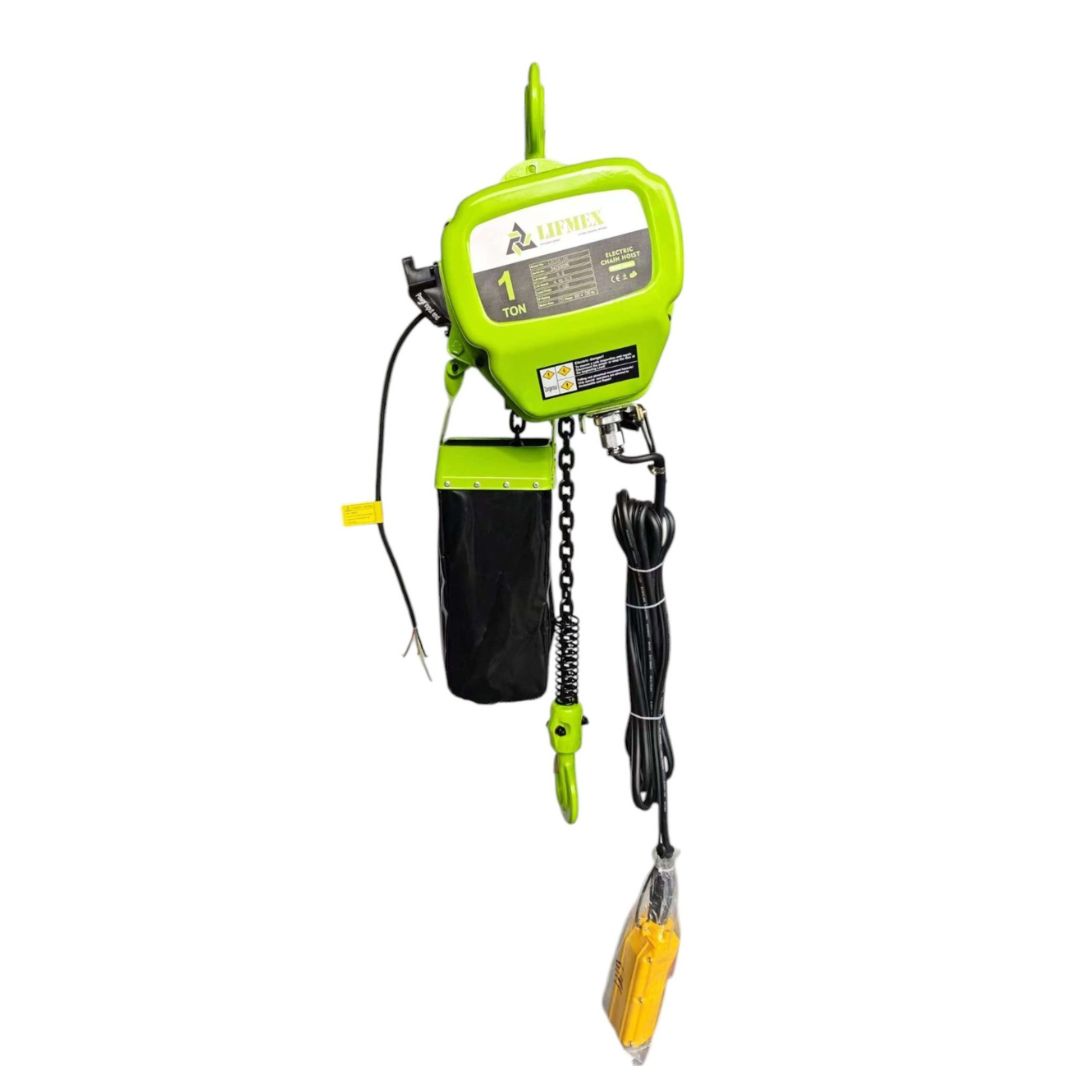

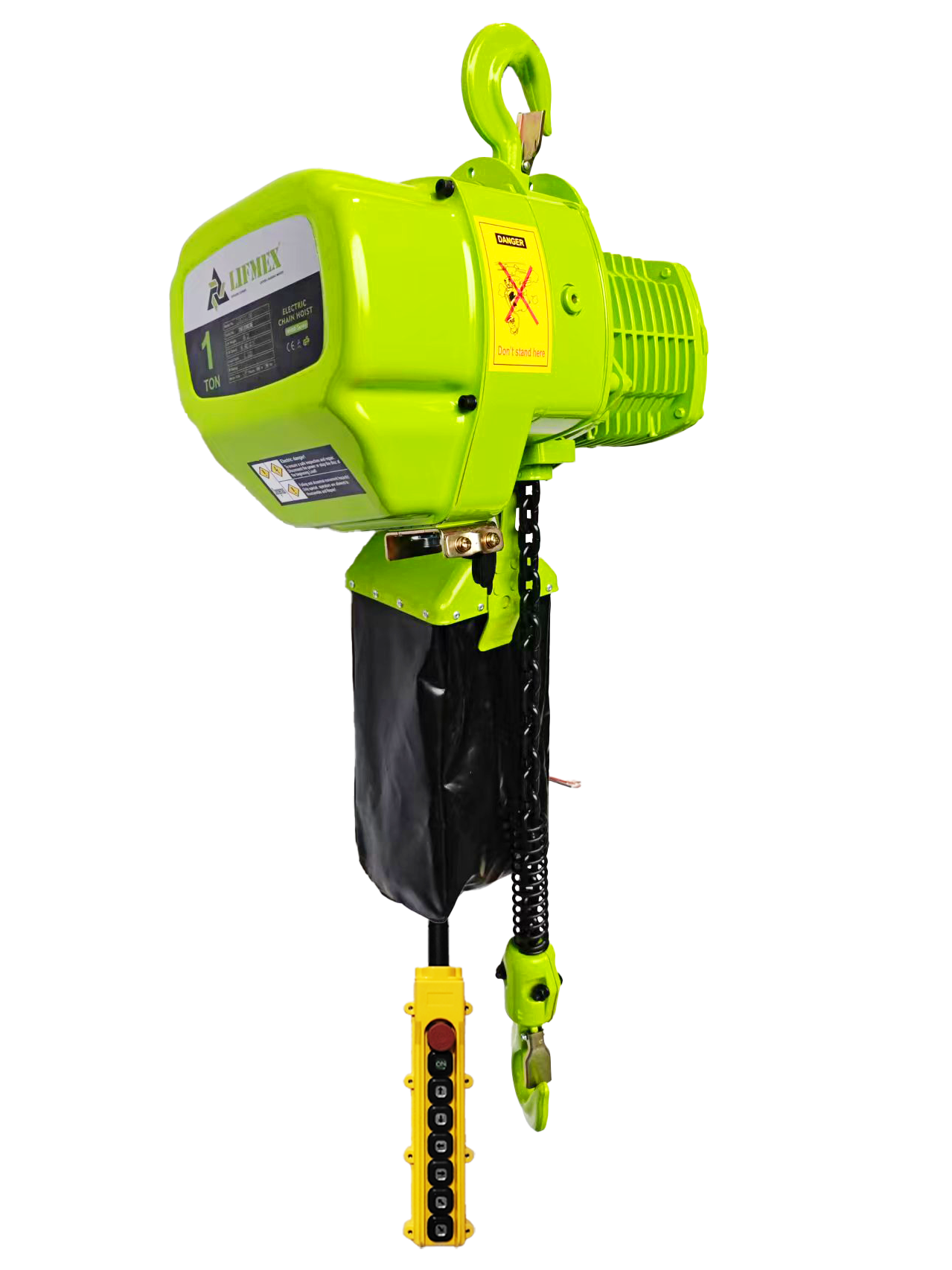

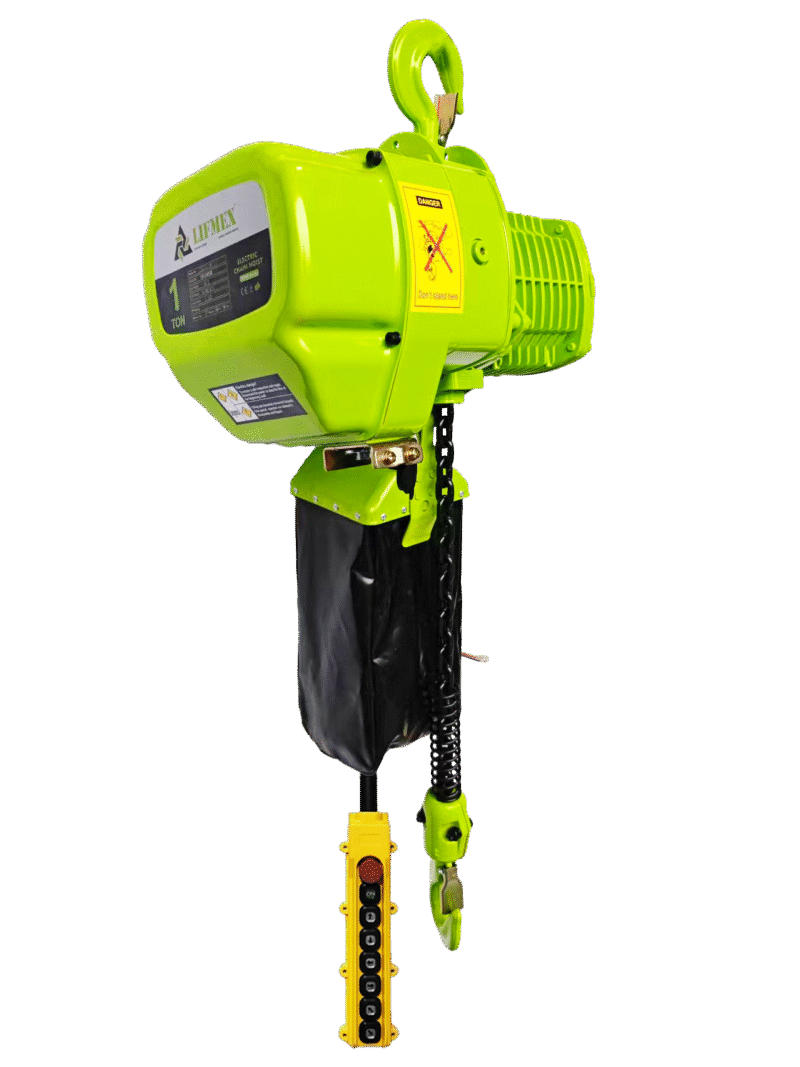

Lifmex Electric Chain Hoist

A high-performance lifting solution engineered for smooth, safe, and precise handling across diverse industrial applications. Compact, low-maintenance, and built to global safety standards.



Capacity (t) Standard Lift (m) Test Load (kN) Motor Power (kW) No. of Chains Chain Diameter (mm) Lifting Speed (m/min) I-Beam Size (mm)
Single Dual Single Dual
0.5 3 6.25 0.75 0.8/0.27 1 6.3 6.8 6.9/2.3 58 – 153
1 3 12.5 1.5 1.8/1.6 1 7.1 6.6 6.9/2.3 58 – 153
2 3 25 3 3.0/1.0 1 10 6.6 6.8/2.3 82 – 178
3 3 37.5 3 3.0/1.0 1 11.2 5.4 5.4/1.8 100 – 178
5 3 62.5 3 3.0/1.0 2 11.2 2.8 2.7/0.9 100 – 178
7.5 3 94 3 3.0/1.0 3 11.2 1.8 0.6 100 – 178
10 6 125 3 3.0 × 2/1.0 × 2 4 11.2 2.7 2.7/0.9 150 – 220

Functions

  • Lifts and moves heavy loads with precision.
  • Ensures controlled load handling with minimal operator effort.



Key Features

  • Smooth & Precise Lifting: Advanced motor control for stable operation.
  • Low Maintenance: Sealed gears and quiet, durable components.
  • Compact Design: Space-saving construction for tight areas.
  • Reliable Performance: Industrial-grade components tested in harsh conditions.
  • Industry Versatility: Suitable for manufacturing, logistics, construction, marine, mining, and more.
