Lifmex Digital Crane Scale

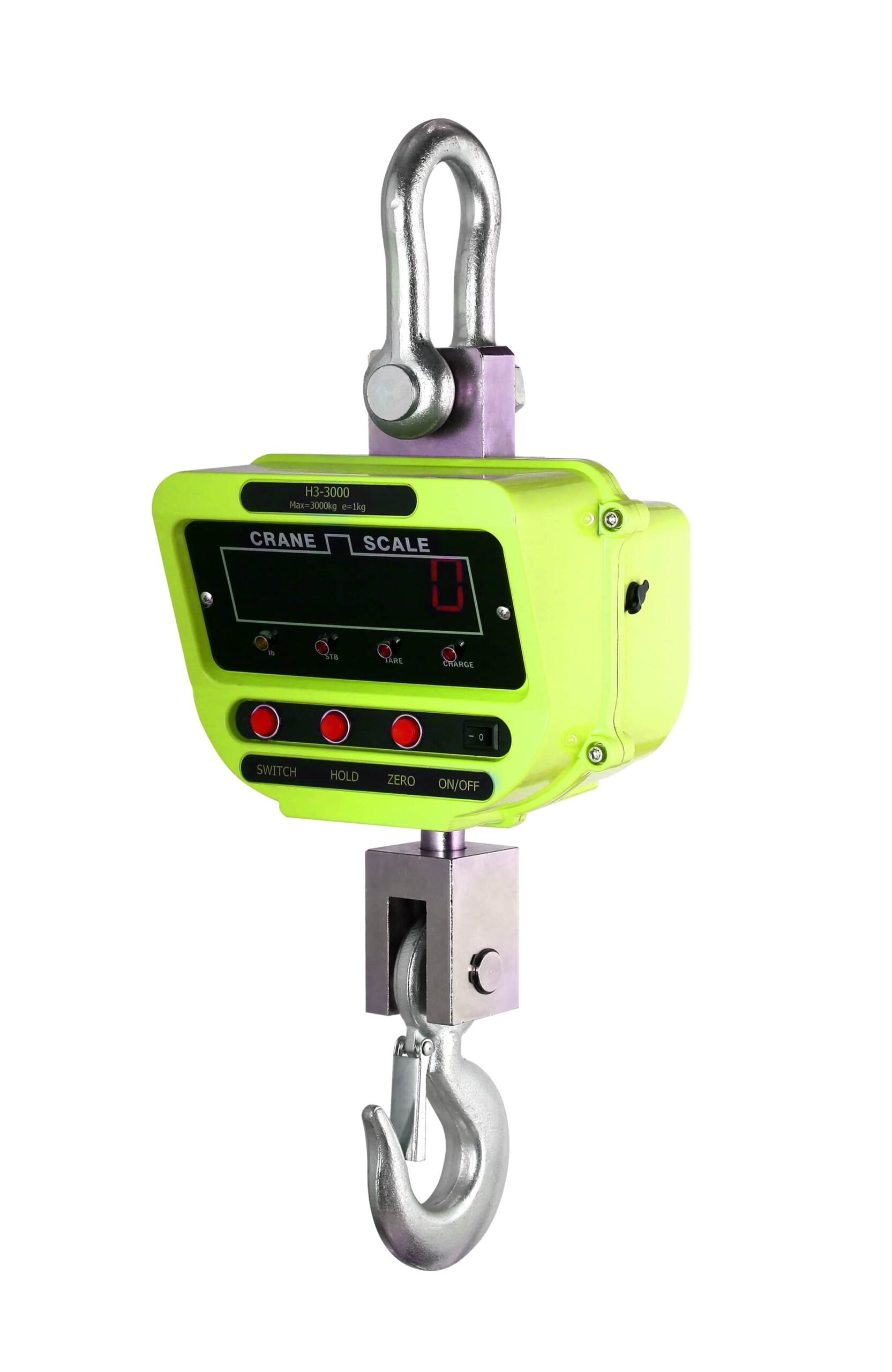

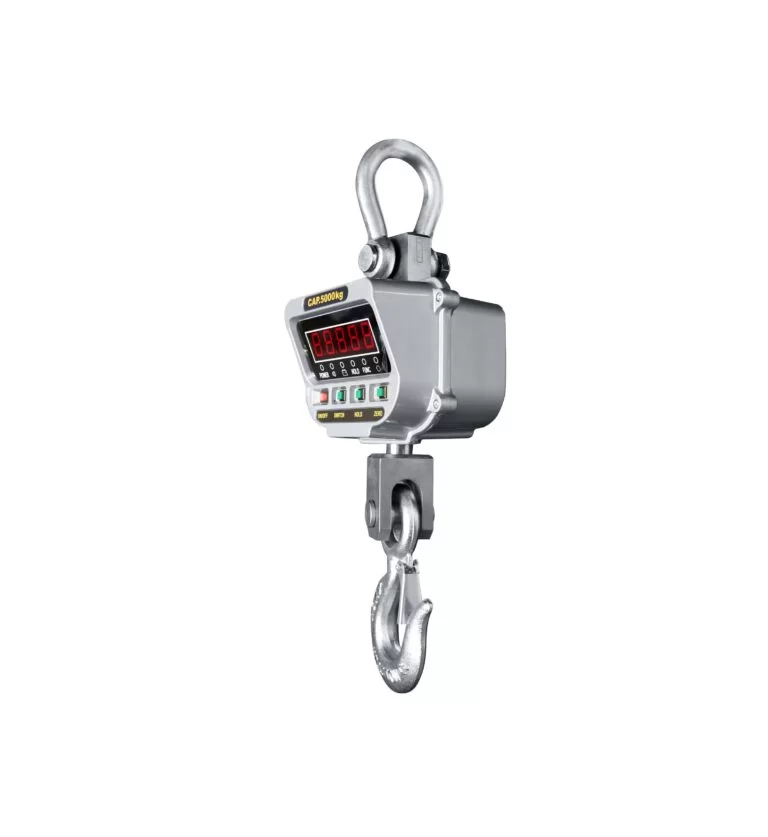

The Digital Crane Scale is a rugged and reliable weighing solution with a capacity range of 1 ton to 15 tons. Designed with a high-strength aluminum-magnesium alloy housing, it combines classic styling with modern digital performance—ideal for indoor industrial use.
| TECHNICAL PARAMETERS | |
|---|---|
| Accuracy Level | OIML III |
| Peel the scope | 100% F.S |
| Zero Range | 4% F.S |
| Safe Load | 120% F.S |
| Ultimate Load | 500% F.S |
| Overload Warning Value | 100% F.S + 9e |
| Battery Specification | 6V/10Ah |
| Continuous Working Time | >80h |
| Charger Specification | 7.5V/1000mA |

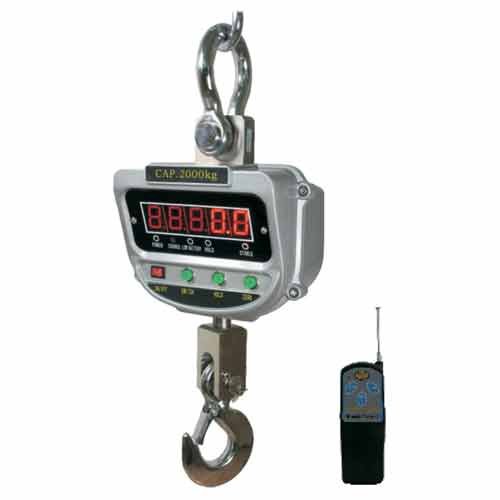

| Remote Control Distance | ≥10m |
| Temperature Range | -10°C~40°C |
| Capacity
(t) |
Division
(t) |
Dimensions (mm) | Approx N.W.
(kg) |
|||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | H | |||
| 1 | 0.5/0.2 | 95 | 175 | 27 | 260 | 200 | 530 | 12 |
| 2 | 1/0.5 | 95 | 175 | 32 | 260 | 200 | 570 | 13 |
| 3 | 1/0.5 | 125 | 175 | 37 | 260 | 200 | 590 | 14 |
| 5 | 2/1 | 125 | 175 | 40 | 260 | 200 | 680 | 16 |
| 10 | 5/2 | 125 | 175 | 50 | 260 | 200 | 735 | 26 |
| 15 | 5/2 | 135 | 172 | 60 | 260 | 200 | 917 | 34 |
Functions
- Accurately weighs suspended loads in lifting and material handling operations.
- Allows users to monitor load weight in real time.
- Ensures safe lifting by preventing overloading.
Key Features
- Housing: Micro die-cast aluminum-magnesium alloy for high durability.
- Display: Super bright 5-digit LED with 30mm character height—easy to read in dim lighting.
- Functions: Hold, Zero, and Division conversion.
- Battery Access: Quick rear-casing unlock for fast battery changes.
- Hook Design: 360° rotating safety hook for ease of use and flexibility.
- Performance: Stable and accurate, even in tough working environments.
