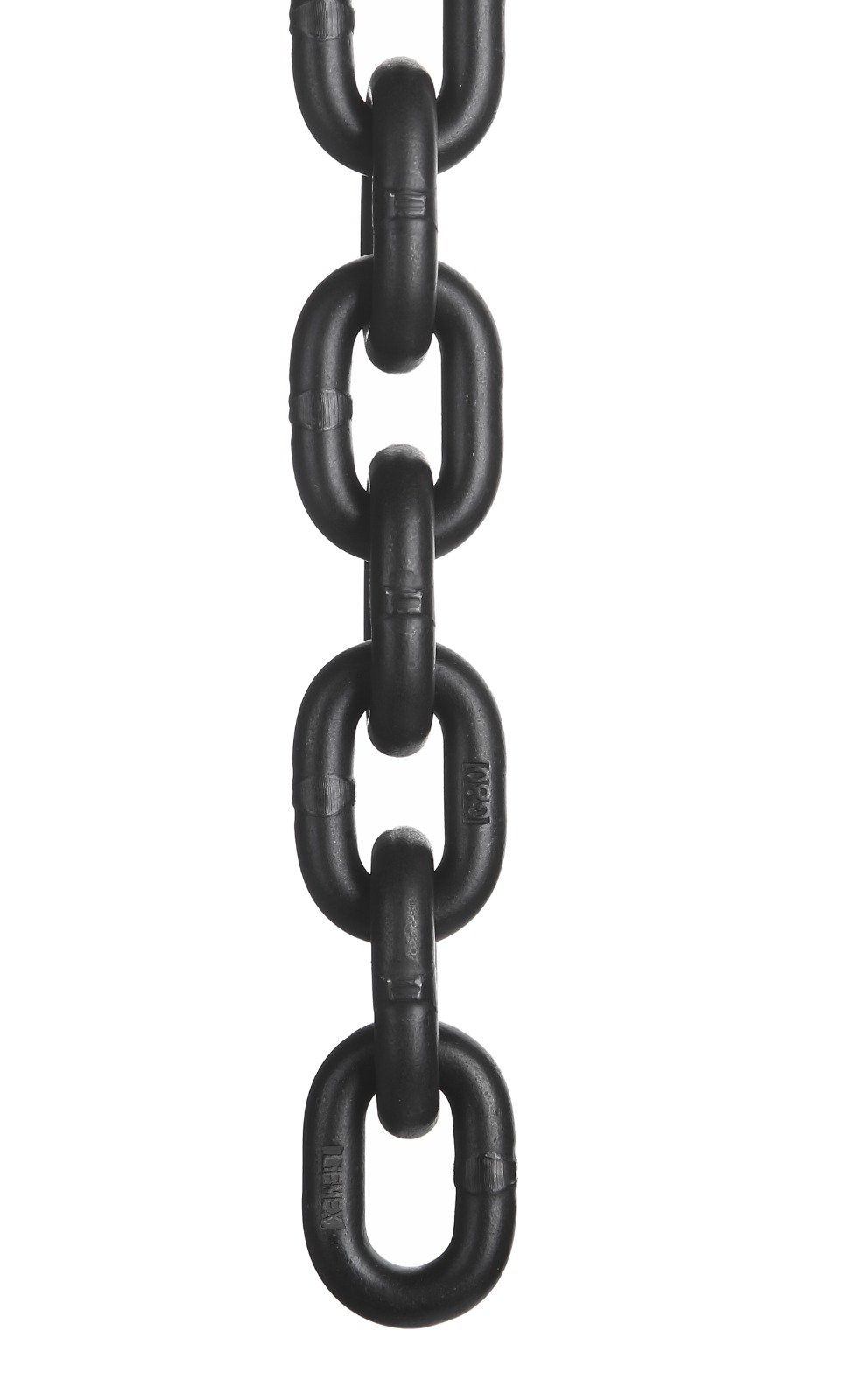

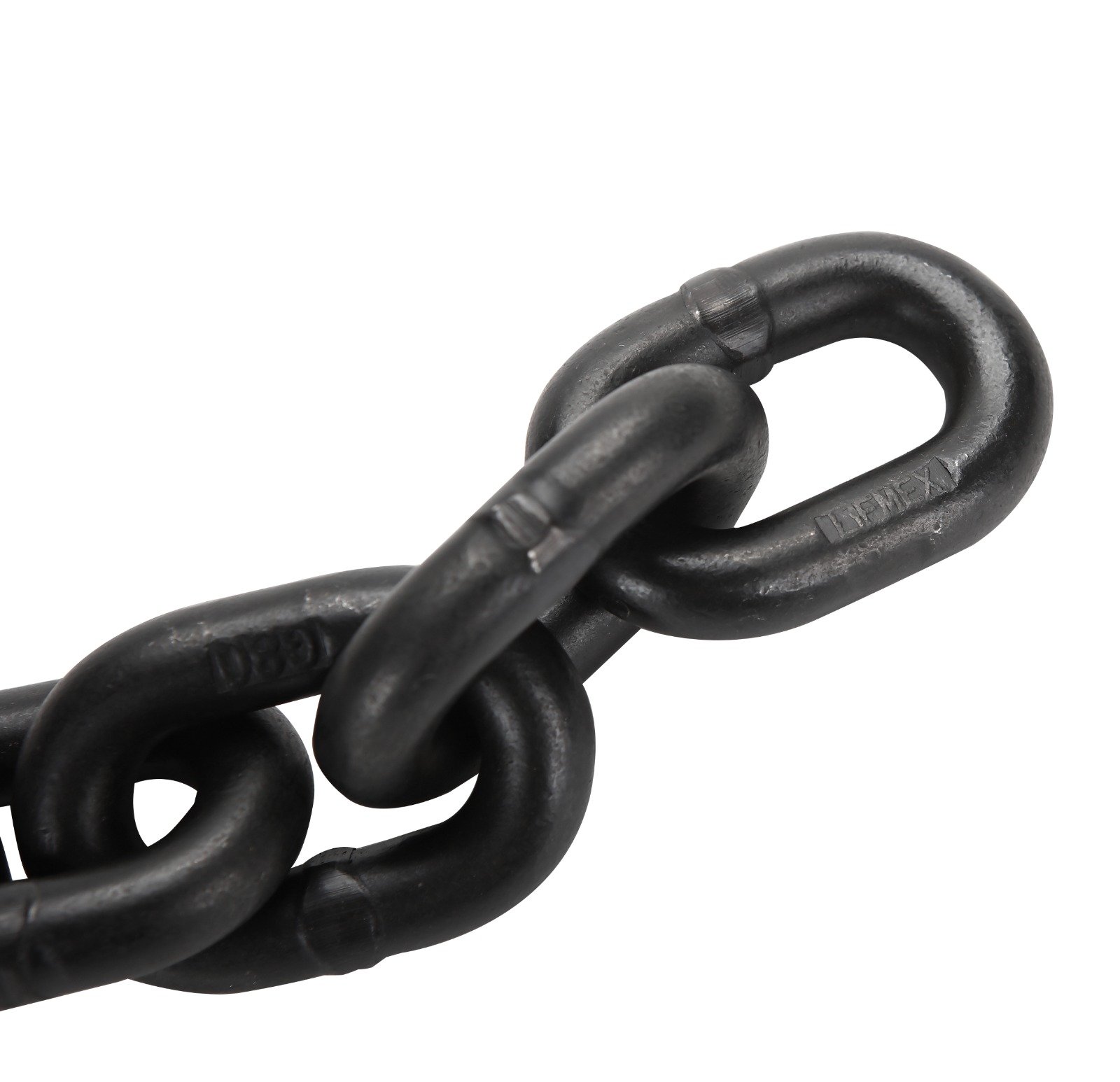

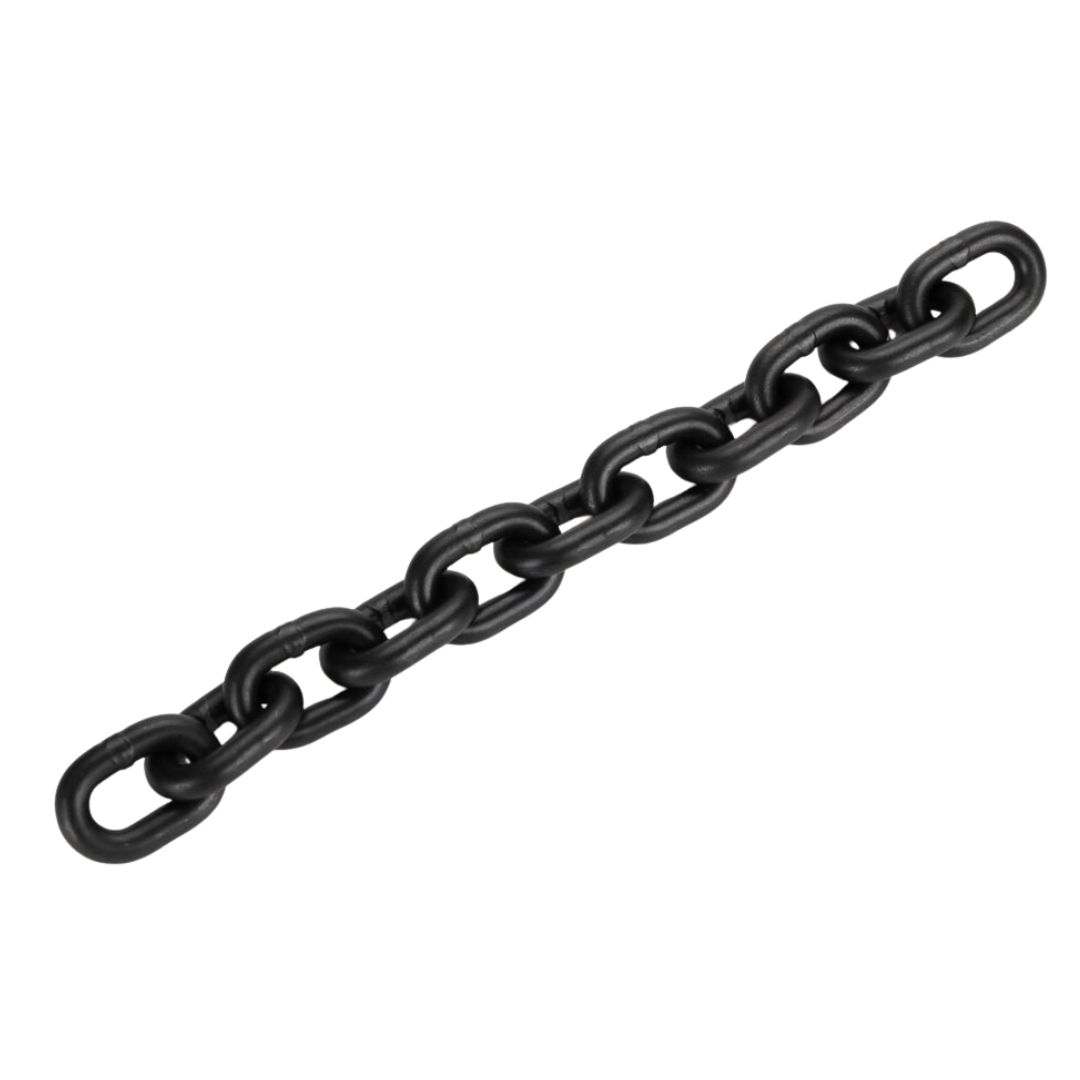

Grade 80 Chain
- G80 Load Chain, also known as Grade 80 lifting chain or G80 alloy lifting chain, is a high-quality chain product used for various lifting applications.
- It’s made from superior quality alloy steel and is manufactured according to strict standards like ISO 3077, EN 818, and AS2321.
| Size (mm)
d x P |
Width (mm) | WLL
(t) |
BL
(kN) |
Approx N.W.
(kg/mtr) |
|
|---|---|---|---|---|---|
| Inside MIN
(a) |
Outside MAX
(b) |
||||
| 6 x 18 | 7.5 | 21 | 1.1 | 45.2 | 0.79 |
| 8 x 24 | 10 | 28 | 2 | 80.4 | 1.38 |
| 10 x 30 | 12.5 | 35 | 3.15 | 126 | 2.2 |
| 13 x 39 | 16.3 | 46 | 5.3 | 212 | 3.8 |
| 16 x 48 | 20 | 56 | 8 | 320 | 5.63 |
| 20 x 60 | 25 | 70 | 12.5 | 450 | 8.6 |
| 22 x 66 | 28 | 77 | 15.3 | 610 | 10.2 |
| 26 x 78 | 35 | 91 | 21.3 | 850 | 14.87 |
| 32 x 96 | 40 | 106 | 32.2 | 1286 | 22.29 |
Functions
- Chain slings: Used to create custom lifting configurations for specific tasks.
- Lifting equipment: Employed in various lifting equipment, such as chain hoists and winches.
- Rigging: Utilized in rigging setups to secure loads and components.
Key Features
- High Tensile Strength: G80 chains offer exceptional tensile strength, making them suitable for heavy-duty lifting tasks.
- Durability: They are designed to withstand harsh conditions and resist wear and tear.
- Safety: G80 chains are manufactured with a safety factor of 4, ensuring a high level of safety during lifting operations.
- Versatility: They can be used in a wide range of applications, including construction, manufacturing, and material handling.
