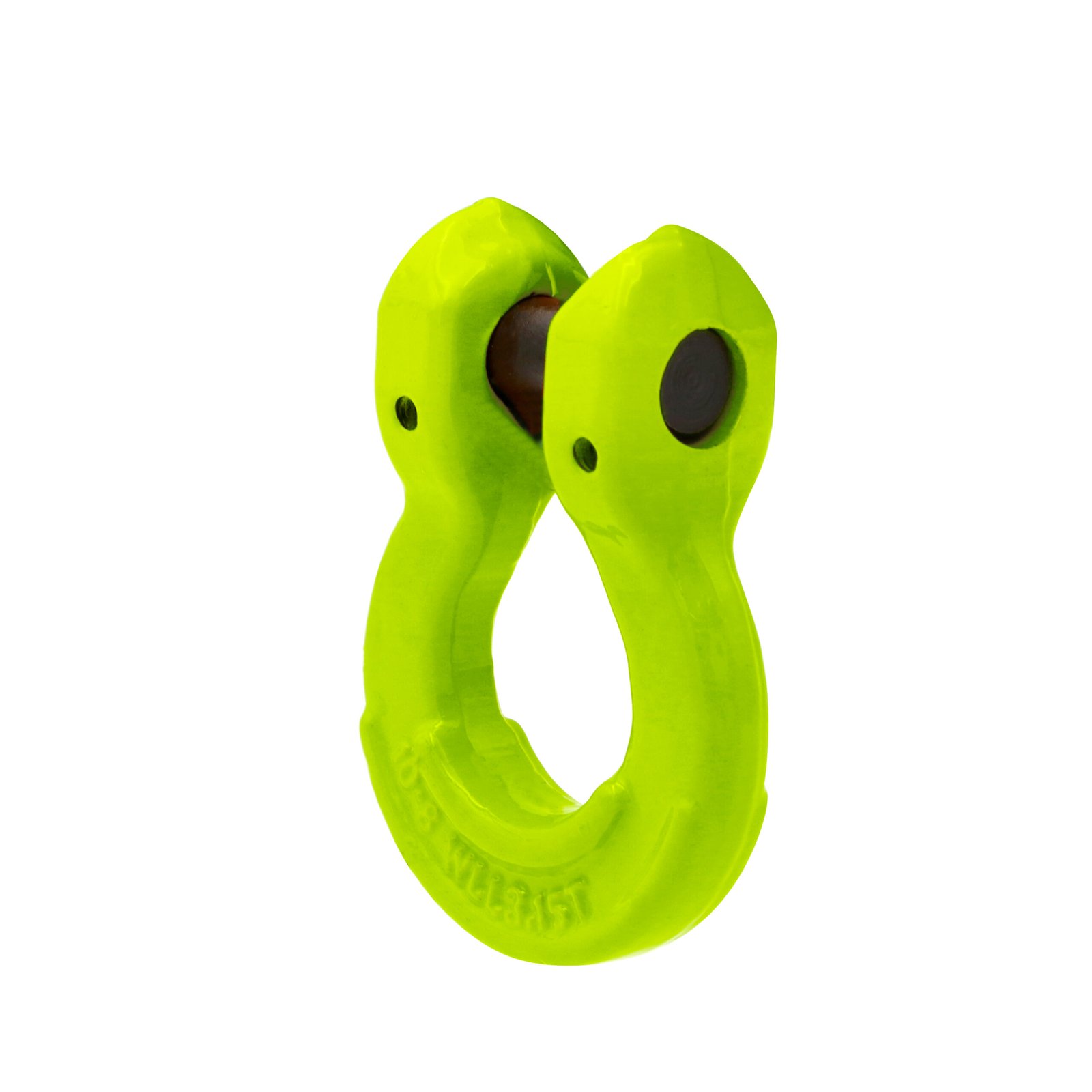

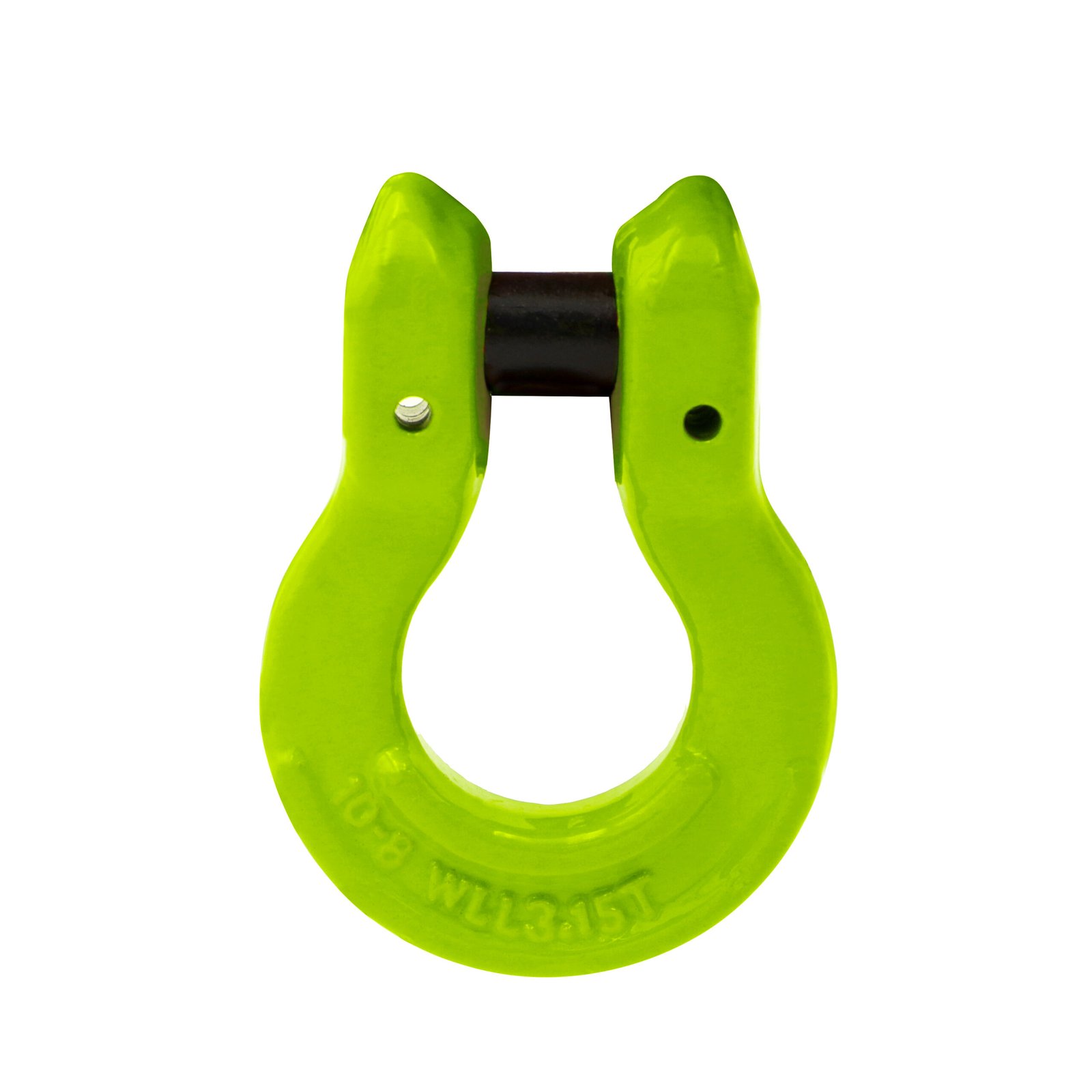

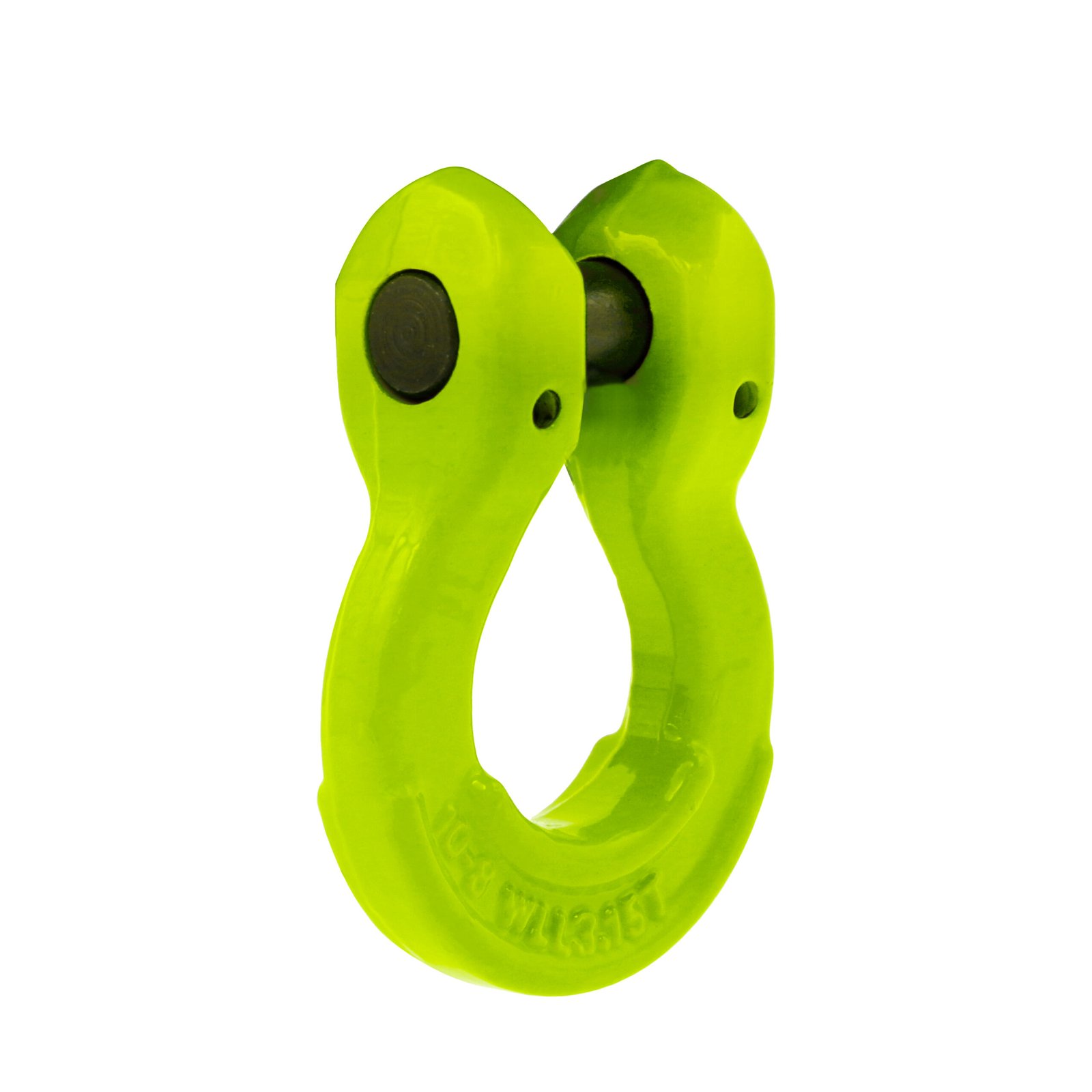

G80 Omega Link
- G80 Omega Links are primarily used in lifting and rigging applications to connect different components of a lifting assembly. Here are some specific uses:
- Connecting Chain Slings: They are used to connect chain segments or attach end fittings to chain slings.
- Creating Custom Lifting Configurations: They are employed to create custom lifting configurations for specific tasks, such as lifting irregular or oddly shaped loads.
- Rigging Equipment: They are utilized in various rigging setups to secure loads and components.
- In essence, G80 Omega Links provide a reliable and secure connection between different components of a lifting assembly, ensuring safe and efficient material handling.
| Size (mm) | WLL (t) | BL (t) | Dimensions (mm) | Approx N.W. (kg/pc) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | Ø | H | L | ||||
| 7/8 – 8 | 2 | 8 | 10 | 52 | 23.5 | 35 | 68.5 | 0.21 |
| 10 – 8 | 3.15 | 12.6 | 12 | 62 | 31.5 | 40.5 | 81 | 0.36 |
| 13 – 8 | 5.3 | 21.2 | 15 | 81 | 41 | 54 | 108 | 0.71 |
Functions
- Construction: For lifting and moving heavy construction materials and equipment.
- Manufacturing: For handling heavy machinery and components within factories and workshops.
- Logistics and Warehousing: For moving and storing heavy goods in warehouses and distribution centers.
- Mining and Quarrying: For lifting and transporting heavy mining equipment and extracted materials.
- Oil and Gas: For lifting and installing heavy equipment in offshore and onshore operations.
- Marine Industry: For shipbuilding, ship repair, and other marine operations.
Key Features
- High Tensile Strength: The G80 grade steel provides exceptional strength, making it suitable for heavy-duty lifting operations.
- Forged Construction: The forging process enhances the link’s structural integrity, ensuring its resistance to deformation and failure under load.
- Omega Shape: The distinctive omega shape allows for easy insertion and removal from chain slings or other lifting components.
- Secure Connection: The link provides a reliable and secure connection between different components of a lifting assembly.
- Versatility: G80 Omega Links can be used in various lifting configurations, making them adaptable to different applications.
