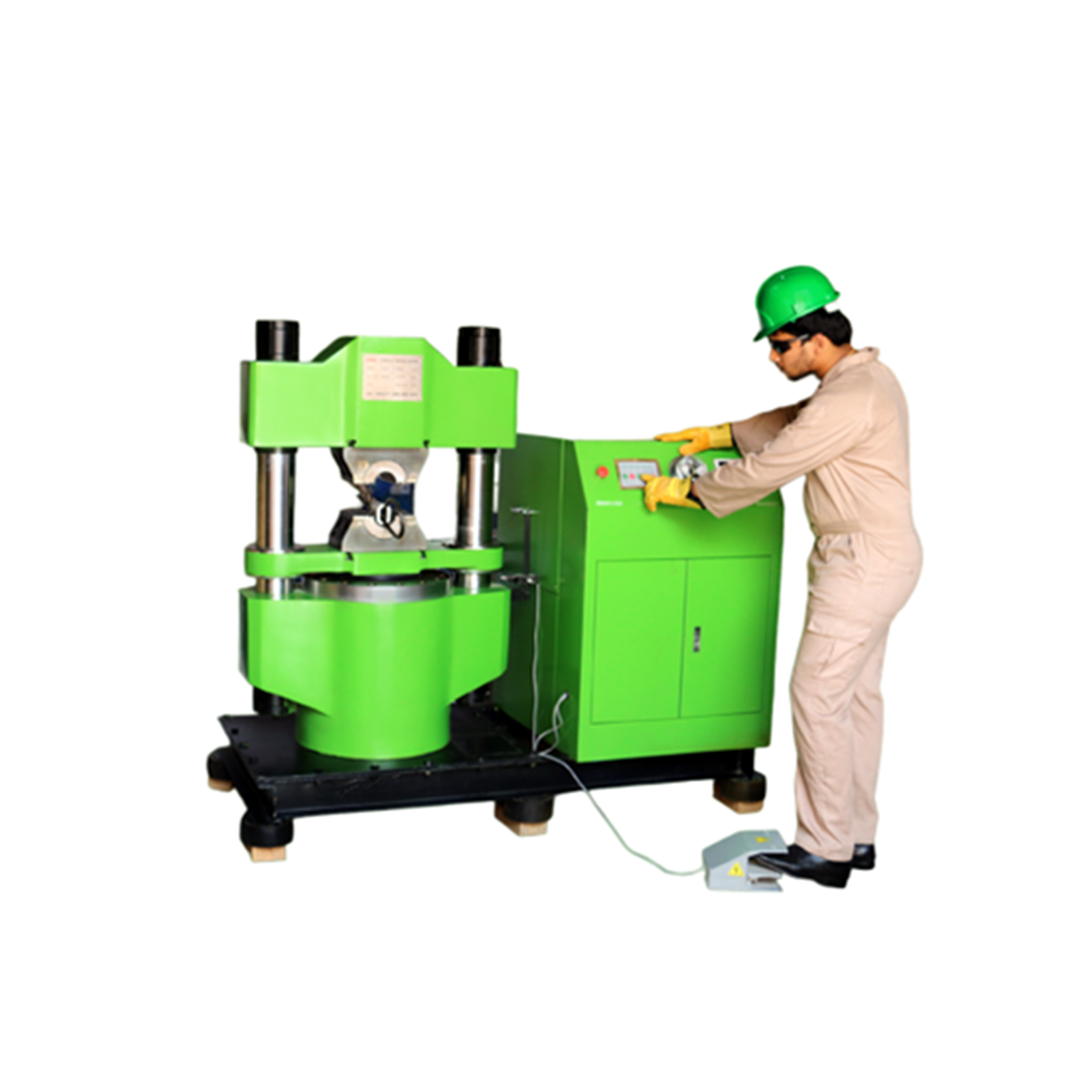

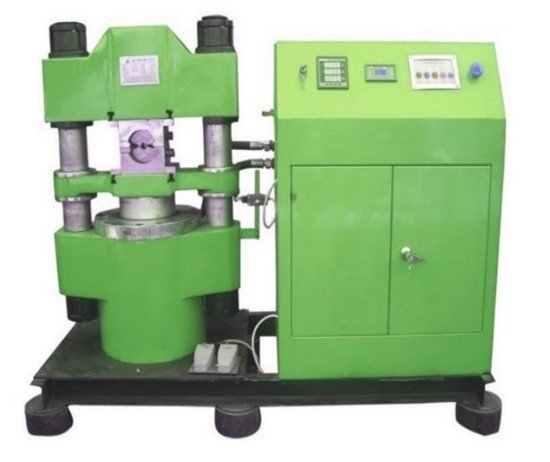

Ferrule Pressing Machine
- A Ferrule Pressing Machine is a specialized tool used to crimp or press ferrules onto the ends of cables or wires. Ferrules are metal sleeves that provide mechanical support and electrical insulation to the wire or cable termination.
| Specifications | Unit | LFPM0300 | |
|---|---|---|---|
| Nominal Pressure | kN | 3000 | |
| Maximum Diameter in one pressure | mm | 28 | |
| Maximum Diameter with multi bite pressing | mm | 32 | |
| Maximum Piston Movement | mm | 140 | |
| Maximum Working Movement | mm | 60 | |
| Maximum Working Pressure | MPa | 28 | |
| Approximate Weight | kg | 2000 | |
| Overall Size (L x W x H) | m | 1.95 x 0.95 x 1.5 | |
| Volume of Oil Tank | L | 120 | |
| First time theory Storage Volume | L | 80 | |
| Motor | |||
| Voltage | V | 380 | |
| Power | kW | 5.5 | |
| Frequency | Hz | 50 | |
| Hydraulic Pump | |||
| Rated pressure | MPa | 31.5 | |
| Nominal flow | L/min | 25 | |
| Speed of Piston | |||
| Up | mm/s | 5.3 | |
| Down | mm/s | 8.8 | |
| Dies allocation | |||
| GB straight aluminum ferrule | # | 10-32 | |
| GB taper aluminum joint | # | 10-32 | |
| DIN straight aluminum joint | # | 10-26 | |
| DIN taper aluminum joint | # | 10-26 | |
| W902 conical steel ferrule | # | 10-26 | |
Functions
- Electrical Wiring: Crimping wire ends for connections in electrical panels, control cabinets, and other electrical equipment.
- Telecommunications: Crimping connectors for network cables, fiber optic cables, and other telecommunications equipment.
- Automotive: Crimping wire connections in automotive wiring harnesses.
- Aerospace: Crimping wire connections in aircraft and aerospace equipment.
Key Features
- Precision Crimping: The machine ensures accurate and consistent crimping of ferrules, preventing loose connections and potential electrical hazards.
- Efficient Operation: Automated or semi-automated machines can significantly increase productivity and reduce labor costs.
- Wide Range of Applications: Ferrule pressing machines can be used for various wire sizes and types, making them versatile tools in electrical and electronic assembly.
- Adjustable Crimping Force: Many machines allow for adjustment of the crimping force, ensuring optimal results for different wire gauges and ferrule types.
- Durable Construction: The machines are built to withstand heavy-duty use and provide reliable performance.
