Electric Chain Hoist With Trolley

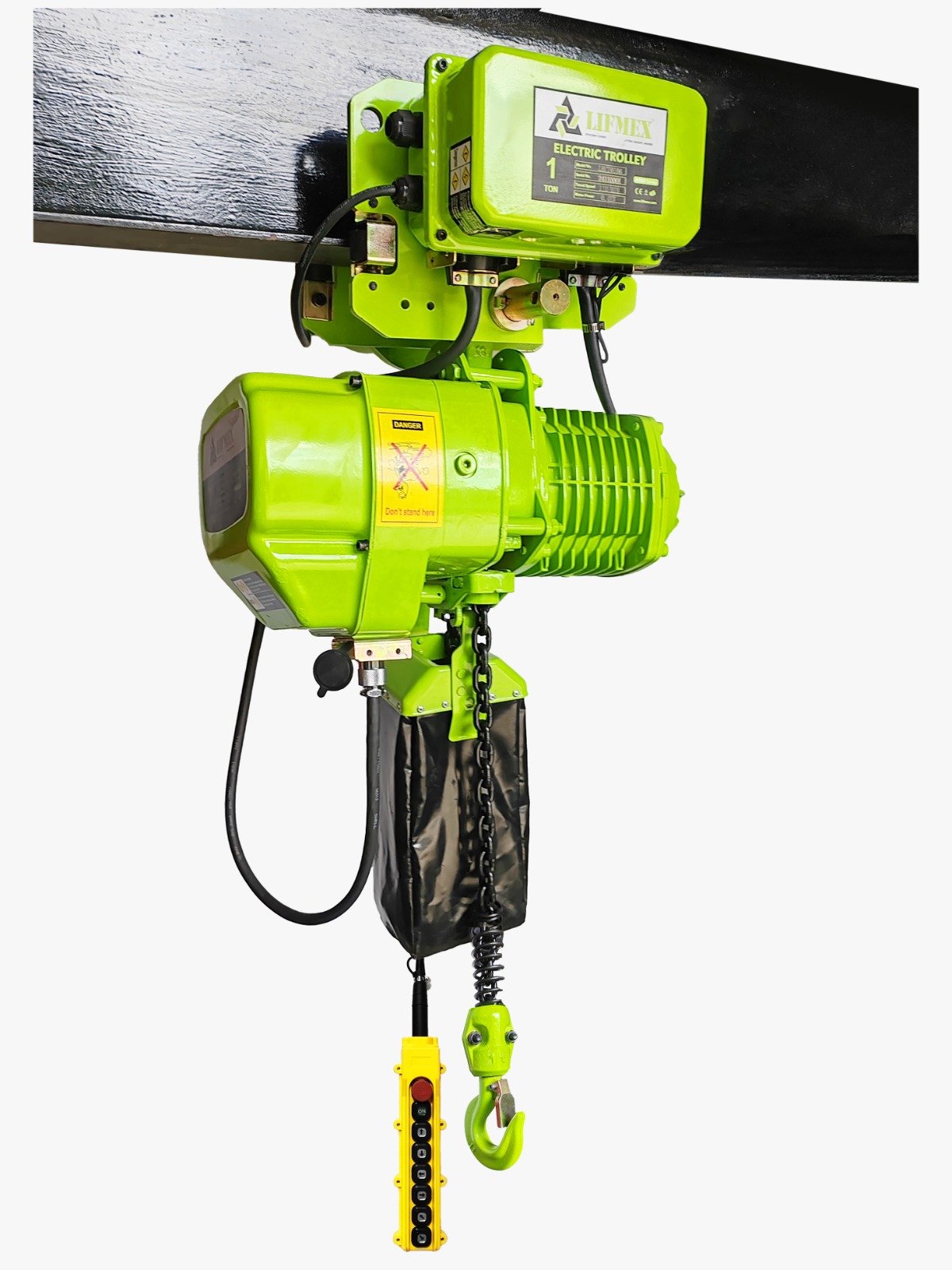

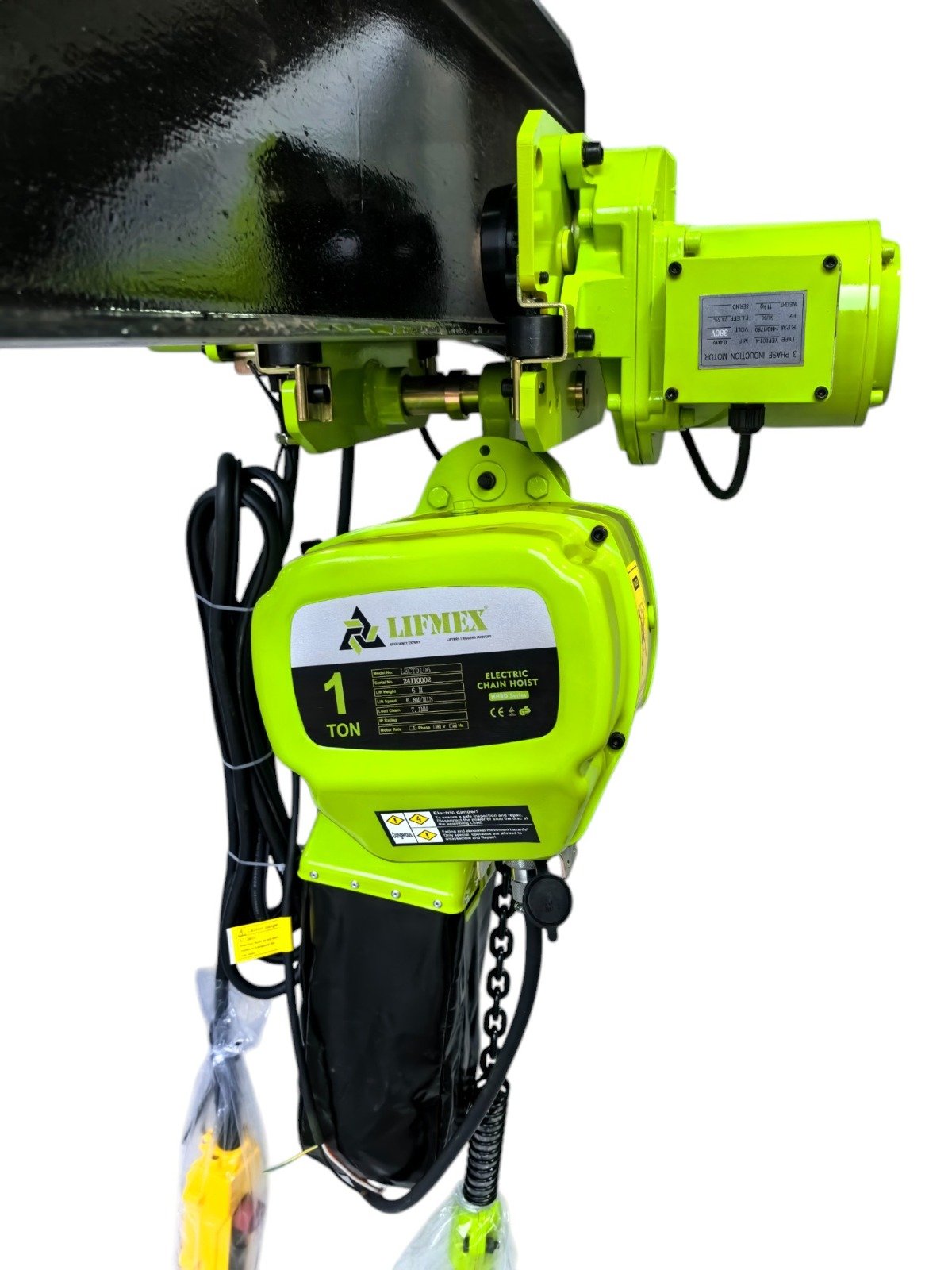

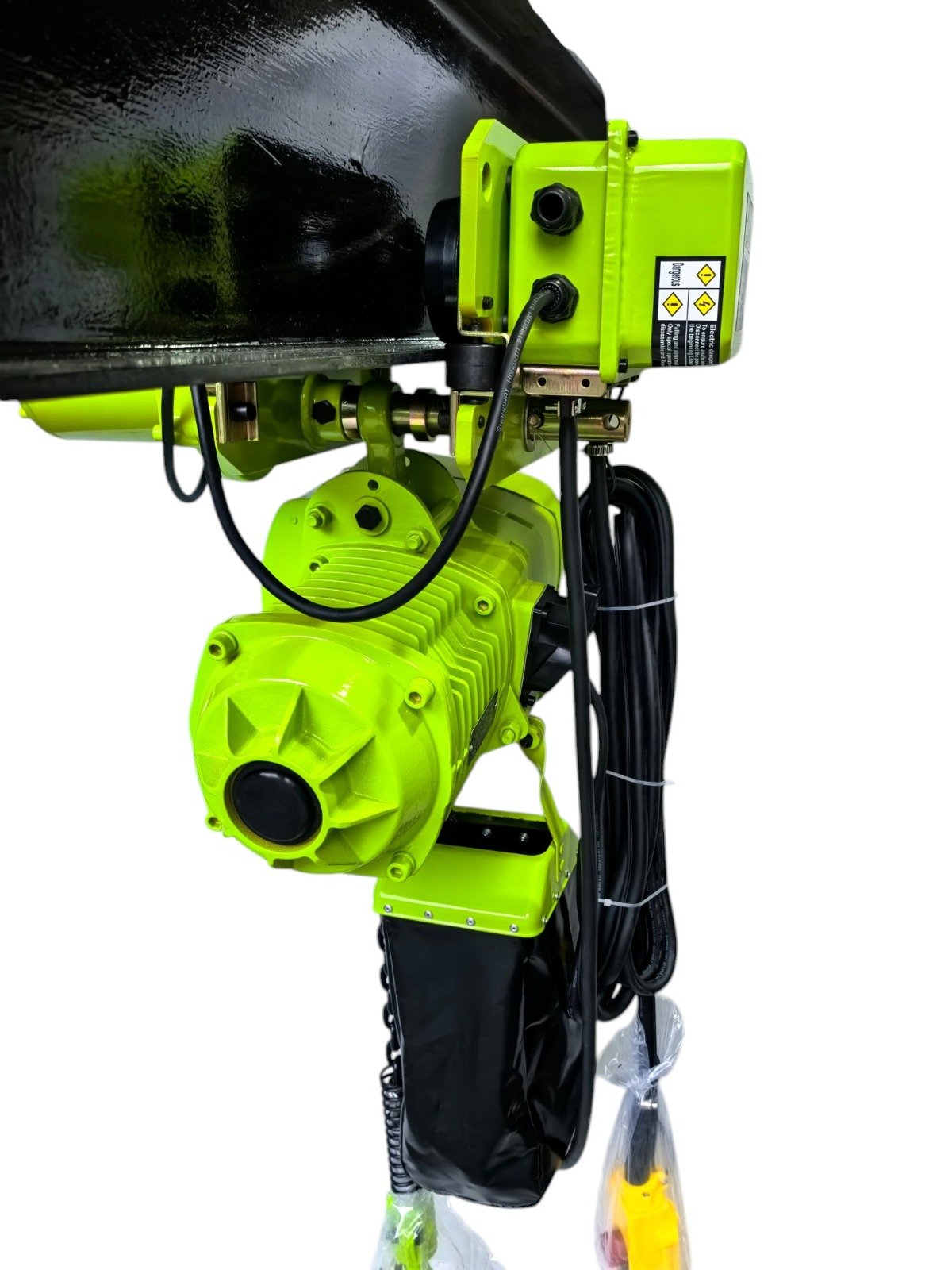

The Lifmex Electric Chain Hoist with Trolley (0.5 to 25 ton) is a compact, low-headroom lifting solution designed for smooth and efficient material handling. Featuring a precision gearbox, sealed bearings, and motorized trolley, it ensures low maintenance and jerk-free operation—ideal for industrial use.
| Capacity
(t) |
Speed 50Hz
(m/min) |
Motor
(kW) |
MIN Turning Radius
(m) |
I-Beam Size
(mm) |
|---|---|---|---|---|
| 0.5 | 11/21 | 0.4 | 0.8 | 52-153 |
| 1 | 11/21 | 0.4 | 0.8 | 52-153 |
| 2 | 11/21 | 0.4 | 0.8 | 82-178 |
| 3 | 11/21 | 0.75 | 1.0 | 100-178 |
| 5 | 11/21 | 0.75 | 1.8 | 100-178 |
| Capacity (t) | Standard Lift (m) | Test Load (kN) | Motor Power (kW) | No. of Chains | Chain Diameter (mm) | Lifting Speed (m/min) | I-Beam Size (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | Single | Dual | ||||||
| 0.5 | 3 | 6.25 | 0.75 | 0.8/0.27 | 1 | 6.3 | 6.8 | 6.9/2.3 | 58 – 153 |
| 1 | 3 | 12.5 | 1.5 | 1.8/1.6 | 1 | 7.1 | 6.6 | 6.9/2.3 | 58 – 153 |
| 2 | 3 | 25 | 3 | 3.0/1.0 | 1 | 10 | 6.6 | 6.8/2.3 | 82 – 178 |
| 3 | 3 | 37.5 | 3 | 3.0/1.0 | 1 | 11.2 | 5.4 | 5.4/1.8 | 100 – 178 |
| 5 | 3 | 62.5 | 3 | 3.0/1.0 | 2 | 11.2 | 2.8 | 2.7/0.9 | 100 – 178 |
| 7.5 | 3 | 94 | 3 | 3.0/1.0 | 3 | 11.2 | 1.8 | 1.8/0.6 | 100 – 178 |
| 10 | 6 | 125 | 3 | 3.0 x 2/1.0 x 2 | 4 | 11.2 | 2.7 | 2.7/0.9 | 150 – 220 |
| 15 | 6 | 187.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 6 | 11.2 | 1.8 | 1.8/0.6 | 150 – 220 |
| 20 | 6 | 250 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 8 | 11.2 | 1.4 | 1.5/0.6 | 150 – 220 |
| 25 | 6 | 312.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 10 | 11.2 | 1.1 | 1.2/0.4 | 160-220 |
Functions
- Overhead Lifting-Enables vertical movement of loads using an electric chain hoist.
- Lateral Load Transport-Moves the hoist and attached load horizontally along the beam using a motorized trolley.
- Low-Headroom Operation-Allows for operation in spaces with limited vertical clearance.
- Smooth Load Movement-Provides stable and jerk-free lifting and trolley motion for precise handling.
- Three-Phase Electrical Operation-Operates on 3-phase, 380V, 50Hz power supply.
- Speed Control-Lifting and trolley travel at single speed (dual speed optional upon request).
Key Features
- Compact Design-Space-saving construction ideal for low-headroom applications.
- Motorized Trolley-Drives the hoist horizontally via an integrated motor and gear system.
- Precision Gearbox-Ensures jerk-free, smooth lifting motion.
- Sealed Bearings-Require no external lubrication; reduce maintenance needs.
- Self-Lubricating Gears-Extend service life and reduce maintenance frequency.
- Unique Side Guide System (Trolley)-Enhances stability and smoothness of trolley movement.
