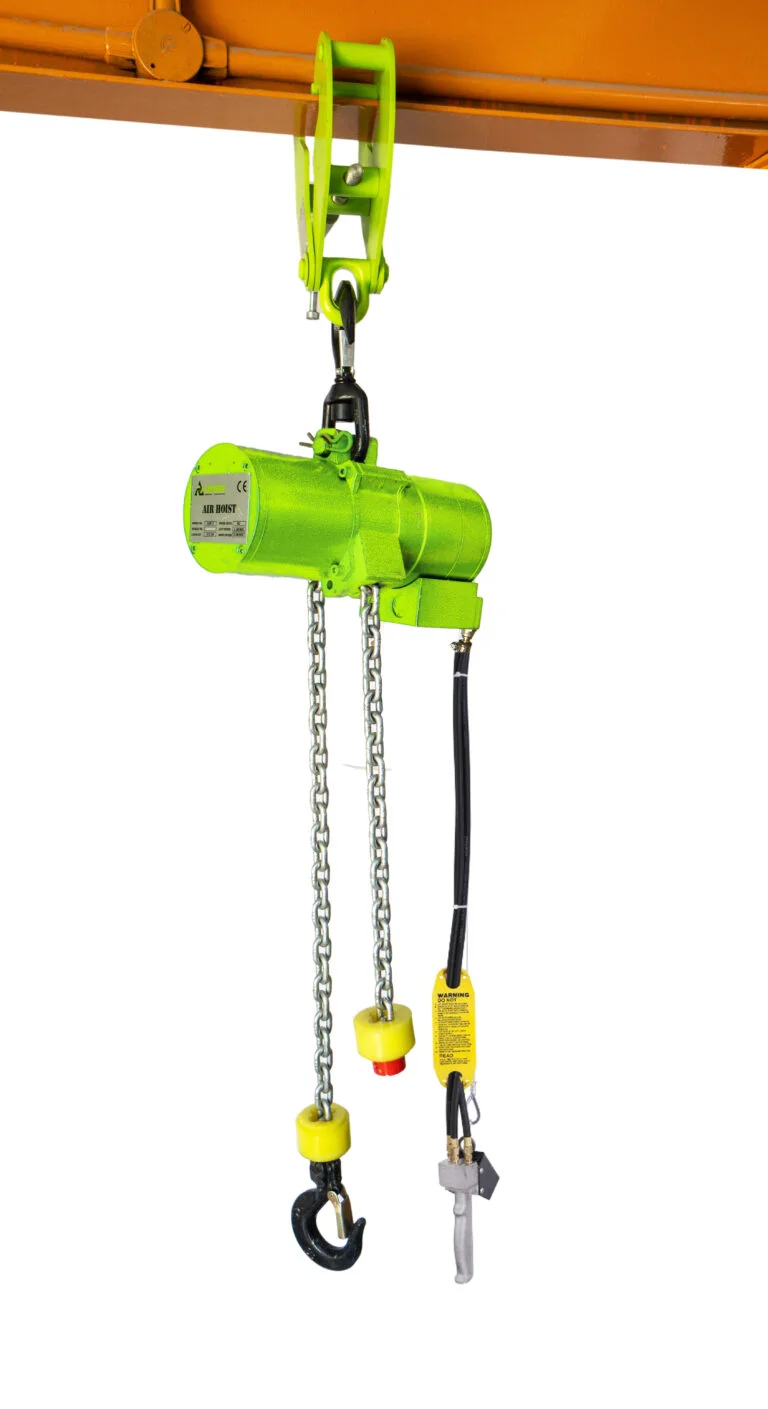

Air Hoist
The Lifmex Air Hoist is a reliable, pneumatic lifting solution powered by compressed air, ideal for heavy-duty applications in hazardous or explosive environments. Designed for durability and precision, it operates safely where electric hoists may pose a risk.
Rated Lifting Weight
(t) |
Rated Pressure
(MPa) |
Speed Up
(m/min) |
Decline Rate
(m/min) |
Gas Consumption
(m³/min) |
---|---|---|---|---|
1 | 0.5 | 1.98 | 2.19 | 3 |
5 | 0.4 | 0.4 | 1 | 3 |
6 | 0.5 | 0.5 | 1.1 | 3.3 |
8 | 0.4 | 0.3 | 1 | 3.5 |
10 | 0.5 | 0.4 | 1.2 | 4.3 |
Functions
- Lifts heavy loads vertically using compressed air
- Lowers loads with smooth, controlled motion
- Moves loads horizontally when used with a trolley
- Operates safely in flammable or explosive environments
- Ensures precise load positioning during handling
Key Features
- Spark-free operation for use in flammable/explosive areas
- Smooth and precise load control
- Dust-, moisture-, and temperature-resistant construction
- Continuous-duty performance without overheating
- Compatible with beam trolleys or fixed mounting systems
